assets::Material Class Reference

Shader-driven material asset. More...

#include <material.hpp>

Inheritance diagram for assets::Material:

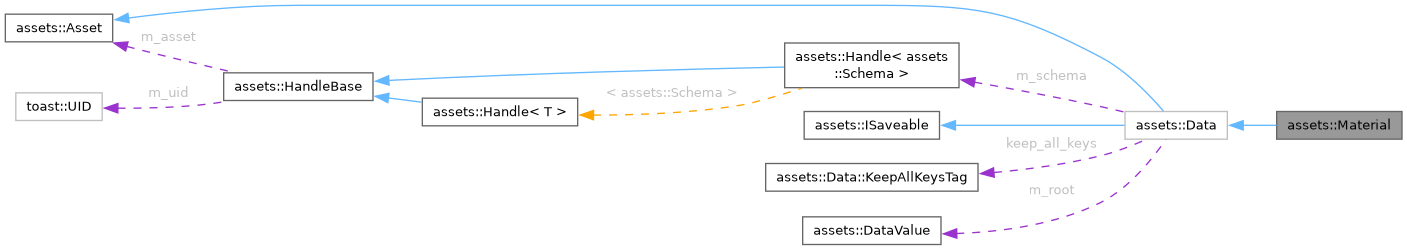

Collaboration diagram for assets::Material:

Public Member Functions
	Material (const toml::table &table, Handle< Schema > schema={})
auto	type () const -> std::string_view override
auto	serialize (SaveMode mode) const -> std::vector< uint8_t > override
void	reload (const toml::table &table) override
	Re-parses the asset contents in place.
auto	name () const -> std::string
	Display name of the material.
virtual auto	shaders () const -> const std::vector< Handle< Shader > > &
virtual auto	settings () const -> MaterialSettings
virtual auto	value (std::string_view key) const -> const DataValue *
	Looks up a shader parameter value by name.
virtual auto	rootMaterial () -> Material *
	The material owning the render pass, instances return their parent.
Public Member Functions inherited from assets::Data
	Data (const toml::table &table, Handle< Schema > schema={})
	Data (const toml::table &table, Handle< Schema > schema, KeepAllKeysTag)
	Stores the schema handle for round-trip serialization but runs free-form buildRoot, keeping every TOML key.
auto	operator[] (std::string_view k) -> DataValue &
auto	operator[] (std::string_view k) const -> const DataValue &
auto	contains (std::string_view k) const -> bool
auto	root () const -> const DataValue &
auto	schema () const -> const Handle< Schema > &
Public Member Functions inherited from assets::Asset
	Asset (const Asset &)=delete
auto	operator= (const Asset &) -> Asset &=delete
auto	refCount () const noexcept -> uint32_t

Additional Inherited Members
Static Public Attributes inherited from assets::Data
static constexpr KeepAllKeysTag	keep_all_keys {}
Protected Member Functions inherited from assets::Data
virtual void	onReloaded ()
Protected Member Functions inherited from assets::Asset
void	addRef () noexcept
void	release () noexcept
Protected Attributes inherited from assets::Data
DataValue	m_root
	Object DataValue holding all fields.
Handle< Schema >	m_schema
	optional
bool	m_keep_all_keys = false

Detailed Description

Shader-driven material asset.

The shaders array defines which shader assets the material renders with; every other key holds a value for a shader parameter discovered via reflection

The trailing settings table carries fixed-function state

Member Function Documentation

reload()

void assets::Material::reload ( const toml::table & table )

overridevirtual

Re-parses the asset contents in place.

Reimplemented from assets::Data.

Reimplemented in assets::MaterialInstance.

Here is the caller graph for this function:

rootMaterial()

virtual auto assets::Material::rootMaterial ( ) -> Material *

inlinenodiscardvirtual

The material owning the render pass, instances return their parent.

Reimplemented in assets::MaterialInstance.

serialize()

auto assets::Material::serialize ( SaveMode mode ) const -> std::vector< uint8_t >

nodiscardoverridevirtual

Reimplemented from assets::Data.

type()

auto assets::Material::type ( ) const -> std::string_view

inlinenodiscardoverridevirtual

Reimplemented from assets::Data.

value()

auto assets::Material::value ( std::string_view key ) const -> const DataValue *

nodiscardvirtual

Looks up a shader parameter value by name.

Reimplemented in assets::MaterialInstance.

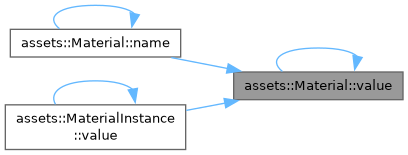

Here is the caller graph for this function:

---

The documentation for this class was generated from the following files:

• engine/src/toast/assets/material.hpp
• engine/src/toast/assets/material.cpp
