vox_import.hpp File Reference

#include <cstdint>
#include <glm/glm.hpp>
#include <optional>
#include <span>
#include <string>
#include <toast/export.hpp>
#include <toast/voxel/brick_pool.hpp>
#include <toast/voxel/palette.hpp>
#include <toast/voxel/stamp.hpp>
#include <toast/voxel/voxel_volume.hpp>
#include <vector>

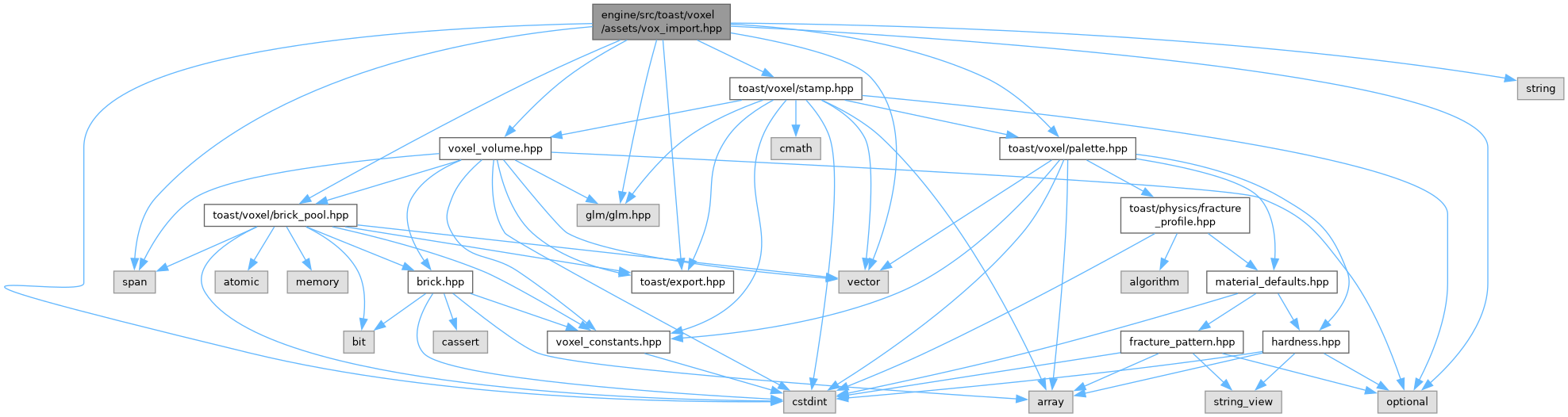

Include dependency graph for vox_import.hpp:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	assets::VoxVoxel
struct	assets::VoxModel
struct	assets::VoxTransform
	Translation positions the node centre not its corner. More...
struct	assets::VoxNode
struct	assets::VoxScene
struct	assets::VoxPlacement

Functions
auto	assets::voxOrientationFromByte (uint8_t rotation) -> std::optional< voxel::LatticeOrientation >
	Bits 0-1 source axis of x bits 2-3 source axis of y bits 4-6 negate x y z so the identity is 4 not 0.
auto	assets::voxOrientationToByte (const LatticeOrientation &orientation) -> uint8_t
auto	assets::composeVoxTransforms (const VoxTransform &parent, const VoxTransform &local) -> VoxTransform
auto	assets::voxPlacementOf (const VoxTransform &world, glm::uvec3 model_dims) -> voxel::LatticePlacement
	Half the size moves into the offset floored on unflipped axes and rounded up on flipped ones.
auto	assets::flattenVoxScene (const VoxScene &scene) -> std::vector< VoxPlacement >
auto	assets::buildVoxVolume (const VoxModel &model, BrickPool &pool) -> std::optional< Volume >
auto	assets::importVox (std::span< const uint8_t > data) -> VoxScene

Variables
constexpr uint32_t	assets::k_vox_max_dim = 256

Detailed Description

Author

dario

Date

12/09/2026

Function Documentation

importVox()

TOAST_API auto assets::importVox ( std::span< const uint8_t > data ) -> VoxScene

nodiscard

Exceptions

std::runtime_error

on anything unrepresentable
