animation.hpp File Reference

Keyframe animation asset (.tanim), imported from glTF. More...

#include "core_types.hpp"
#include <cmath>
#include <cstdint>
#include <glm/glm.hpp>
#include <glm/gtc/quaternion.hpp>
#include <span>
#include <string>
#include <toast/export.hpp>
#include <unordered_map>
#include <vector>

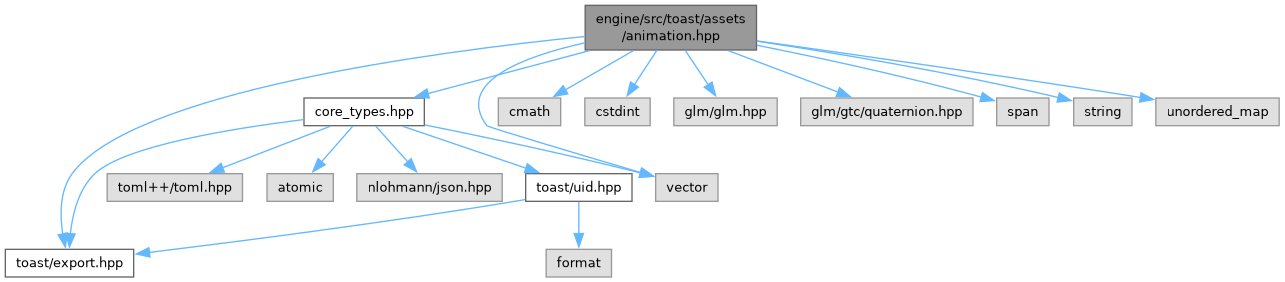

Include dependency graph for animation.hpp:

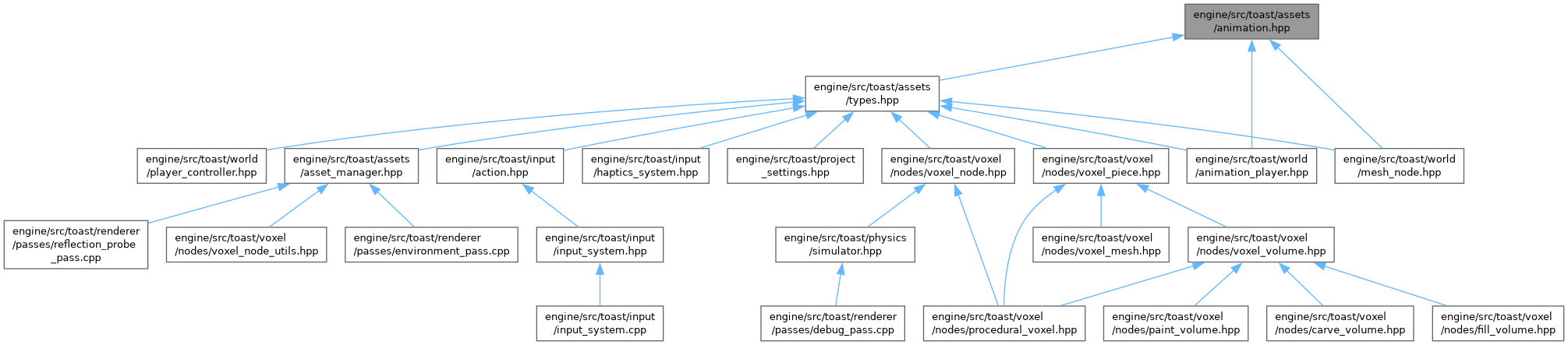

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	assets::AnimationTrack
	One animated channel: a keyframe curve driving one component of one node's transform. More...
struct	assets::NodePose
	One node's sampled transform at a point in a clip. More...
struct	assets::AnimationClip
	A named set of tracks that play together. More...
struct	assets::Skin
	A skeleton: the joint nodes a skinned mesh binds to. More...
class	assets::Animation
	A set of clips plus the skins they pose. More...

Enumerations
enum class	assets::Interpolation : uint8_t { linear , step , cubic_spline }
	How a sampler interpolates between two keyframes, matching glTF's three modes. More...
enum class	assets::TrackTarget : uint8_t { translation , rotation , scale }
	Which part of a node's transform a track drives.

Variables
constexpr uint32_t	assets::_detail::animation_format_version = 3
	Binary layout version for .tanim; readers reject anything they don't recognise.

Detailed Description

Keyframe animation asset (.tanim), imported from glTF.

Author

dario

One clip plus the skins it poses, one file per animation the glTF defines. Sampled by toast::AnimationPlayer, GPU-skinned by renderer::SkinningPass

Bump _detail::animation_format_version on any layout change

Enumeration Type Documentation

Interpolation

enum class assets::Interpolation : uint8_t

strong

How a sampler interpolates between two keyframes, matching glTF's three modes.

Enumerator
cubic_spline	Cubic Hermite. Each keyframe stores three values (in-tangent, value, out-tangent) rather than one, so a cubic track's value array is 3x as long as its time array
