assets::Prefab Class Reference

Inheritance diagram for assets::Prefab:

Collaboration diagram for assets::Prefab:

Classes
struct	Field
	One field value read from a prefab file. More...
struct	Subgroup
	A named sub-section of fields within a group. More...
struct	Group
	A named group of fields and optional subgroups. More...
struct	LuaVarOverride
	Inspector Lua script variable that differs from its declared default. More...
struct	SignalConnection
struct	Signal
struct	BasicNode
	One node entry in a prefab file. More...

Public Types
enum class	Purpose : uint8_t { asset_definition , instance_copy , editor_snapshot }

Public Member Functions
	Prefab (std::istream &file)
	Parses a prefab from a text (.tnode) stream.
	Prefab (std::span< const uint8_t > bytes)
	Parses a prefab from a binary (.tbnode) byte span.
	Prefab (const toast::Node &node, toast::UID self_uid=toast::UID(0), Purpose purpose=Purpose::asset_definition)
	Serializes a live node tree into a Prefab object.
	Prefab (const Prefab &other)
	Prefab (Prefab &&other) noexcept
auto	operator= (const Prefab &other) -> Prefab &
auto	operator= (Prefab &&other) noexcept -> Prefab &
auto	type () const -> std::string_view override
auto	serialize (SaveMode mode) const -> std::vector< uint8_t > override
	Convenience wrapper that delegates to toFile() or toBinary() based on mode.
auto	toFile () const -> std::string
	Serializes to the human-readable text format.
auto	toBinary () const -> std::vector< uint8_t >
	Serializes to the compact binary format.
auto	validate () const -> bool
	Checks structural invariants.
Public Member Functions inherited from assets::Asset
	Asset (const Asset &)=delete
auto	operator= (const Asset &) -> Asset &=delete
auto	refCount () const noexcept -> uint32_t

Static Public Member Functions
static auto	stringifyValue (toast::FieldType type, bool is_array, const std::any &value) -> std::string
	Converts a reflected field value to its text representation.
static auto	valueFromString (toast::FieldType type, bool is_array, std::string_view value) -> std::optional< std::any >
	Parses a text value back into a typed std::any for a reflected field.

Public Attributes
std::vector< Field >	global_fields
std::vector< BasicNode >	nodes

Additional Inherited Members
Protected Member Functions inherited from assets::Asset
void	addRef () noexcept
void	release () noexcept

Constructor & Destructor Documentation

Prefab() [1/3]

assets::Prefab::Prefab

(

std::istream &

file

)

Parses a prefab from a text (.tnode) stream.

Parameters

file	Open input stream positioned at the start of the file

Note

The text format is human-readable; missing or unknown fields are silently skipped

Here is the caller graph for this function:

Prefab() [2/3]

assets::Prefab::Prefab

(

std::span< const uint8_t >

bytes

)

Parses a prefab from a binary (.tbnode) byte span.

Parameters

bytes

Raw file bytes; must start with the TNODE magic header

Note

The binary header contains a version field; a mismatch logs a warning but loading is still attempted

Prefab() [3/3]

assets::Prefab::Prefab ( const toast::Node & node, toast::UID self_uid = toast::UID(0), Purpose purpose = Purpose::asset_definition )

explicit

Serializes a live node tree into a Prefab object.

Parameters

node	The root node of the tree to serialize; all descendants are included
self_uid	UID of this prefab asset on disk; stored in m_self_uid to detect self-referencing loops during instantiation

Member Function Documentation

serialize()

auto assets::Prefab::serialize ( SaveMode mode ) const -> std::vector< uint8_t >

overridevirtual

Convenience wrapper that delegates to toFile() or toBinary() based on mode.

Parameters

mode	SaveMode::editor produces text; SaveMode::game produces binary

Returns

Serialized bytes

Implements assets::ISaveable.

Here is the caller graph for this function:

stringifyValue()

auto assets::Prefab::stringifyValue ( toast::FieldType type, bool is_array, const std::any & value ) -> std::string

static

Converts a reflected field value to its text representation.

Parameters

type	Serialization kind of the value
is_array	True if value holds a std::vector of the field type
value	The value as returned by a FieldInfo getter

Returns

The same text encoding used by the .node text format

Note

Shared by the text serializer and the editor inspector so both agree on formatting

Here is the caller graph for this function:

toBinary()

auto assets::Prefab::toBinary

(

)

const -> std::vector< uint8_t >

Serializes to the compact binary format.

Returns

The .tnode file bytes, including the magic header and version

Here is the caller graph for this function:

toFile()

auto assets::Prefab::toFile

(

)

const -> std::string

Serializes to the human-readable text format.

Returns

A string containing the full .node file content

Here is the caller graph for this function:

type()

auto assets::Prefab::type ( ) const -> std::string_view

inlinenodiscardoverridevirtual

Implements assets::Asset.

validate()

auto assets::Prefab::validate

(

)

const -> bool

Checks structural invariants.

Returns

false and logs errors if nodes is empty, any UID is duplicated, or any field has an unknown type

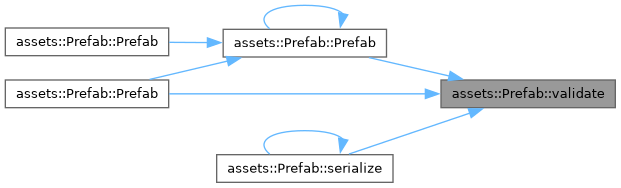

Here is the caller graph for this function:

valueFromString()

auto assets::Prefab::valueFromString ( toast::FieldType type, bool is_array, std::string_view value ) -> std::optional< std::any >

static

Parses a text value back into a typed std::any for a reflected field.

Parameters

type	Serialization kind to parse as
is_array	True if value encodes a std::vector of the field type
value	The text encoding produced by stringifyValue()

Returns

The typed value, or std::nullopt if value could not be parsed

Here is the caller graph for this function:

---

The documentation for this class was generated from the following files:

• engine/src/toast/assets/prefab.hpp
• engine/src/toast/assets/prefab.cpp
