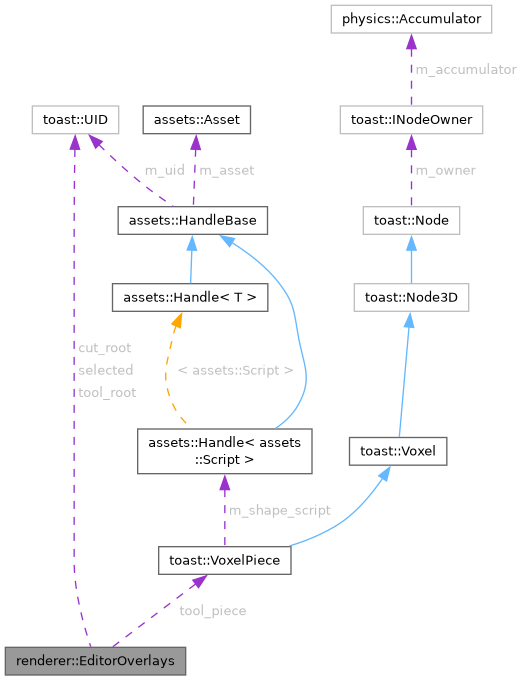

Collaboration diagram for renderer::EditorOverlays:

[legend]

Public Attributes
bool	surface_unit_grid = false
	1 m lines drawn on the voxel surface
bool	surface_voxel_grid = false
	0.1m lines drawn on the voxel surface
bool	voxel_edges = false
	Lines along the real edges of the voxels.
bool	volume_edges = false
	Lines along the AABB volume for the voxels.
bool	projections = false
	2D diedrico projections peak dibujo tecnico
toast::UID	selected
	Focused node.
toast::UID	cut_root
	The voxel the Split and Slice preview is on.
bool	cut_active = false
glm::vec4	cut_plane {0.0f}
	red is where the normal points
bool	tool_box_active = false
toast::UID	tool_root
glm::ivec3	tool_box_min {0}
glm::ivec3	tool_box_max {0}
glm::vec4	tool_box_color {1.0f}
uint8_t	tool_box_kind = 0
	0 fill, 1 carve, 2 paint, 3 outline only
toast::VoxelPiece *	tool_piece = nullptr
	Draws the preview with the script new volumes get.
bool	tool_box2_active = false
	A second outline, Extrude shows both parts of the face it is splitting.
glm::ivec3	tool_box2_min {0}
glm::ivec3	tool_box2_max {0}

The documentation for this struct was generated from the following file:
