#include <voxel_piece.hpp>

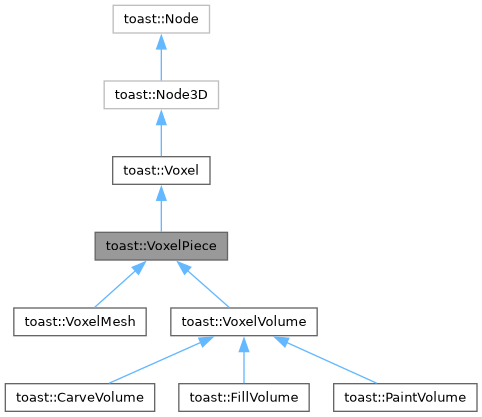

Inheritance diagram for toast::VoxelPiece:

[legend]

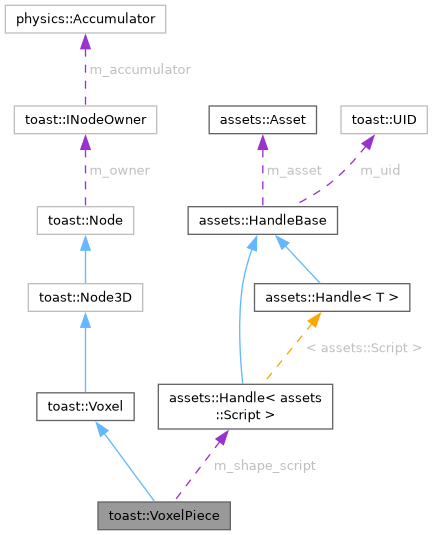

Collaboration diagram for toast::VoxelPiece:

[legend]

Classes
struct	Grid

Public Types
using	GridRef = std::shared_ptr<const Grid>

Public Member Functions
auto	getSize () -> glm::vec3
auto	getVoxel (glm::vec3 pos) -> int
void	setVoxel (glm::vec3 pos, int id)
void	removeVoxel (glm::vec3 pos)
void	fillBox (glm::vec3 min, glm::vec3 max, int id, voxel::WriteMode mode=voxel::WriteMode::replace, int match_id=0)
void	fillRoundBox (glm::vec3 min, glm::vec3 max, float radius, int id, voxel::WriteMode mode=voxel::WriteMode::replace, int match_id=0)
void	fillSphere (glm::vec3 center, float radius, int id, voxel::WriteMode mode=voxel::WriteMode::replace, int match_id=0)
void	fillEllipsoid (glm::vec3 min, glm::vec3 max, int id, voxel::WriteMode mode=voxel::WriteMode::replace, int match_id=0)
void	fillCylinder (glm::vec3 a, glm::vec3 b, float radius, int id, voxel::WriteMode mode=voxel::WriteMode::replace, int match_id=0)
void	fillCapsule (glm::vec3 a, glm::vec3 b, float radius, int id, voxel::WriteMode mode=voxel::WriteMode::replace, int match_id=0)
void	carveBox (glm::vec3 min, glm::vec3 max)
void	carveSphere (glm::vec3 center, float radius)
void	paintBox (glm::vec3 min, glm::vec3 max, int id)
void	stamp (const assets::Handle< assets::VoxelModel > &asset, glm::vec3 pos, glm::quat rotation=glm::quat(1.0f, 0.0f, 0.0f, 0.0f), voxel::WriteMode mode=voxel::WriteMode::replace, int match_id=0)
void	tile (const assets::Handle< assets::VoxelModel > &asset, int fit=0, glm::vec3 anchor=glm::vec3(0.0f), glm::vec3 offset=glm::vec3(0.0f), glm::vec3 mirror=glm::vec3(0.0f), voxel::WriteMode mode=voxel::WriteMode::replace, int match_id=0)
void	redraw ()
auto	getShapeScript () const -> const assets::Handle< assets::Script > &
void	setShapeScript (assets::Handle< assets::Script > script)
auto	getClipPlanes () const -> std::vector< glm::vec4 >
void	setClipPlanes (std::vector< glm::vec4 > planes)
void	addClipPlane (glm::vec4 plane)
void	clearClipPlanes ()
auto	getShapeBounds () -> std::vector< glm::vec3 >
auto	getShape () -> Box< Node >
auto	isMisaligned () const noexcept -> bool
virtual auto	kind () const noexcept -> PieceKind
virtual auto	writeMode () const noexcept -> voxel::WriteMode
virtual auto	matchId () const noexcept -> uint8_t
virtual auto	sourcePaletteUid () const -> uint64_t
auto	grid () -> const voxel::Volume *
auto	gridRef () -> GridRef
void	requestGrid ()
auto	collectGrid () -> bool
auto	readyGrid () -> GridRef
auto	gridBuilding () const noexcept -> bool
auto	gridStale () const noexcept -> bool
void	waitForGrid ()
auto	inputRevision () const noexcept -> uint32_t
auto	buildCount () const noexcept -> uint32_t
auto	clipPlanes () const noexcept -> const std::vector< glm::vec4 > &
auto	nominalSize () -> glm::ivec3
virtual auto	resizable () const noexcept -> bool
void	releaseGrid ()
void	setMisaligned (bool misaligned)
Public Member Functions inherited from toast::Node3D
auto	raycast (glm::vec3 dir, glm::vec3 offset=glm::vec3(0.0f), float max_distance=-1.0f, bool ignore_self=true, const std::vector< int > &layers=std::vector< int > {}) const -> std::optional< physics::RayHit >
	The nearest thing a ray from this node hits.
auto	raymulticast (glm::vec3 dir, glm::vec3 offset=glm::vec3(0.0f), float max_distance=-1.0f, int max_hits=-1, bool ignore_self=true, const std::vector< int > &layers=std::vector< int > {}) const -> std::vector< physics::RayHit >
	Up to `max_hits` things collisions.
auto	linecast (glm::vec3 from, glm::vec3 to, int max_hits=-1, bool ignore_self=true, const std::vector< int > &layers=std::vector< int > {}) const -> std::vector< physics::RayHit >
	Everything on the line between two points, nearest to `from` first.
void	lookAt (glm::vec3 target, glm::vec3 up={0.0f, 0.0f, 1.0f})
	Orients the node so its forward axis points at a world-space target.
void	lookAtZ (glm::vec3 target)
	lookAt() constrained to the XY plane; the node faces the target with no roll
auto	up () const -> glm::vec3
auto	forward () const -> glm::vec3
void	syncTransform () const
void	syncWorldTransform () const
void	refreshTransformParent ()
auto	getTransform () const noexcept -> const glm::mat4 &
auto	getWorldTransform () const noexcept -> const glm::mat4 &
virtual void	onEditorTransformChanged ()
Public Member Functions inherited from toast::Node
auto	uid () const noexcept -> const UID &
	Stable unique identifier, assigned at construction or deserialization. Never changes.
auto	rid () const noexcept -> std::uintptr_t
	Runtime identifier for this node, guaranteed to be unique but changes every time.
auto	name () const noexcept -> std::string_view
	Display name. Siblings may share one - this is not an identifier.
void	name (std::string_view name) noexcept
	Sets the display name.
auto	enabled () const noexcept -> bool
	Whether this node is currently active.
auto	participatesIn (NodeOwnerParticipation use) const noexcept -> bool
auto	owner () const noexcept -> INodeOwner *
	The World or Workspace this node belongs to.
void	enabled (bool value) noexcept
	Sets the local enabled flag and propagates the change to all children.
auto	box () const noexcept -> Box< Node >
	Returns an owning handle to this node.
auto	info () const -> const NodeInfo *
	Reflection metadata registered by the code generator.
auto	sourcePrefab () const noexcept -> const assets::Handle< assets::Prefab > &
	The prefab this node was instantiated from.
auto	isInstanceRoot () const noexcept -> bool
	Whether this node is the root of a prefab instance.
auto	root () const noexcept -> Box< Node >
	The topmost ancestor that is not the world root.
auto	state () const noexcept -> NodeState
auto	type () const noexcept -> NodeType
auto	listener () noexcept -> event::Listener &
	The event Listener owned by this node. Lazy-allocated, freed only with the node.
auto	parent () noexcept -> Box< Node >
	The immediate parent of this node.
auto	children () const noexcept -> const std::vector< Box< Node > > &
	The ordered list of direct children.
auto	childrenSnapshot () const -> std::vector< Box< Node > >
auto	create (std::string_view type="toast::Node") noexcept -> Box< Node >
	Creates a new child node of the given type and attaches it to this node.
auto	spawn (UID uid) noexcept -> Box< Node >
	Asynchronously instantiates a prefab as a child of this node.
auto	spawn (std::string_view uri) noexcept -> Box< Node >
	Asynchronously instantiates a prefab as a child of this node.
auto	find (std::string_view query) -> Box< Node >
	Depth-first search for a single descendant.
auto	find (const UID &uid) -> Box< Node >
	Looks up a node by UID within this node's local root.
auto	search (std::string_view query) -> std::vector< Box< Node > >
	Depth-first search for all matching descendants.
auto	childrenOfType (const NodeInfo *type) const -> std::vector< Box< Node > >
auto	searchType (const NodeInfo *type) const -> std::vector< Box< Node > >
void	addDependsOn (Node &other)
void	removeDependsOn (Node &other)
void	interactsWith (Node &other)
	Declares that the scripts of this node and of other call each other.
auto	scriptRuntime () noexcept -> scripting::ScriptRuntime *
auto	hasTickFunction (TickFunctionList mask) const noexcept -> bool
auto	scriptVm (TickFunctionList func) const noexcept -> std::optional< size_t >
	The interpreter this node runs Lua on while it executes func, empty when it runs none.
auto	scriptVmAny () const noexcept -> std::optional< size_t >
	The interpreter the scripts of this node live on whatever phase they define.
auto	hasCallable (std::string_view name) const noexcept -> bool
void	reloadScripts () noexcept
	Rebuilds the script runtime after a script asset changed (hot reload or attach).
auto	scripts () const noexcept -> const std::vector< assets::Handle< assets::Script > > &
void	setScripts (std::vector< assets::Handle< assets::Script > > scripts) noexcept
void	addScript (const assets::Handle< assets::Script > &script) noexcept
template<typename R = void, typename... Args>
auto	call (std::string_view name, Args &&... args) -> R
	Invokes all C++ reflected implementations of name (base→derived) and all same-named Lua functions across every attached script, forwarding args.
template<typename T>
auto	get (std::string_view name) const -> T
	Reads a named value: reflected C++ field first, then the first matching Lua instance variable.
template<typename T>
void	set (std::string_view name, const T &value)
	Writes a named value: reflected C++ field if present and every Lua instance variable of that name that already exists.
auto	isRecursivePrefab () const noexcept -> bool

Public Attributes
signals::Signal	drawn
	Sent after editShape drew the grid again.
Public Attributes inherited from toast::Node3D
glm::vec3	position = glm::vec3(0.0f)
glm::quat	rotation = glm::quat(1.0f, 0.0f, 0.0f, 0.0f)
glm::vec3	scale = glm::vec3(1.0f)
glm::vec3	world_position = glm::vec3(0.0f)
glm::quat	world_rotation = glm::quat(1.0f, 0.0f, 0.0f, 0.0f)
glm::vec3	world_scale = glm::vec3(1.0f)
Public Attributes inherited from toast::Node
signals::Signal< Box< Node > >	on_enable
signals::Signal< Box< Node > >	on_disable
signals::Signal< Box< Node > >	on_begin
signals::Signal< Box< Node > >	on_end

Protected Member Functions
virtual auto	pieceSize () -> glm::ivec3
virtual auto	prepareGrid () -> std::unique_ptr< voxel::Volume >=0
virtual void	finishGrid (voxel::Volume &)
void	markGridDirty () noexcept
void	markLandingDirty () noexcept
void	onReflectedFieldChanged (std::string_view field_name) override
void	onScriptsReloading () override
void	onScriptsReloaded () override
void	onScriptVarChanged (std::string_view path) override
void	updateInspectorMessages () override
template<typename Kernel>
void	draw (std::string_view operation, Kernel &&kernel)
auto	drawing () const noexcept -> voxel::Volume *
void	init ()
void	destroy ()
Protected Member Functions inherited from toast::Node3D
void	init ()
	X axis.
Protected Member Functions inherited from toast::Node
virtual auto	luaAffinity () const noexcept -> std::optional< size_t >
void	addInspectorMessage (const NodeMessage &message)
void	removeInspectorMessage (const NodeMessage &message)

Protected Attributes
assets::Handle< assets::Script >	m_shape_script
std::vector< glm::vec4 >	m_clip_planes
Protected Attributes inherited from toast::Node
INodeOwner *	m_owner = nullptr

Additional Inherited Members
Static Public Attributes inherited from toast::Node3D
static const glm::vec3	world_up = {0.0f, 0.0f, 1.0f}
static const glm::vec3	world_forward = {0.0f, 1.0f, 0.0f}
	Z axis.
static const glm::vec3	world_right = {1.0f, 0.0f, 0.0f}
	Y axis.

Detailed Description

Base of everything a ProceduralVoxel builds itself from

Every piece draws into its own grid with its first script's editShape The grid is cached so moving, rotating or reordering pieces never runs a script again

Positions are in voxels from the piece corner and each voxel is 10 cm The drawing functions only work while editShape runs

Member Function Documentation

◆ addClipPlane()

void toast::VoxelPiece::addClipPlane ( glm::vec4 plane )

Keeps only the voxels on the side the normal in xyz points to

◆ buildCount()

auto toast::VoxelPiece::buildCount ( ) const -> uint32_t

inlinenodiscardnoexcept

How many times the script grid was built, tests use it to know a move did not redraw

◆ collectGrid()

auto toast::VoxelPiece::collectGrid ( ) -> bool

Takes the grid a worker finished

◆ drawing()

auto toast::VoxelPiece::drawing ( ) const -> voxel::Volume *

nodiscardprotectednoexcept

The grid being drawn when the calling thread is the one drawing it

◆ fillEllipsoid()

void toast::VoxelPiece::fillEllipsoid	(	glm::vec3	min,
		glm::vec3	max,
		int	id,
		voxel::WriteMode	mode = voxel::WriteMode::replace,
		int	match_id = 0 )

The ellipsoid that touches every face of the box from min to max

◆ fillRoundBox()

void toast::VoxelPiece::fillRoundBox	(	glm::vec3	min,
		glm::vec3	max,
		float	radius,
		int	id,
		voxel::WriteMode	mode = voxel::WriteMode::replace,
		int	match_id = 0 )

A box with its edges rounded by radius voxels

◆ finishGrid()

virtual void toast::VoxelPiece::finishGrid ( voxel::Volume & )

inlineprotectedvirtual

Runs after editShape

Reimplemented in toast::VoxelVolume.

◆ getClipPlanes()

auto toast::VoxelPiece::getClipPlanes ( ) const -> std::vector< glm::vec4 >

nodiscard

Clip planes in piece voxels, a voxel is kept when dot(xyz, centre) + w >= 0

◆ getShape()

auto toast::VoxelPiece::getShape ( ) -> Box< Node >

nodiscard

Returns: the ProceduralVoxel the piece is built into, through any groups

◆ getShapeBounds()

auto toast::VoxelPiece::getShapeBounds ( ) -> std::vector< glm::vec3 >

nodiscard

The box the piece covers on its ProceduralVoxel, in shape voxels

Returns: min then max or an empty list when it is not in a ProceduralVoxel

◆ getShapeScript()

auto toast::VoxelPiece::getShapeScript ( ) const -> const assets::Handle< assets::Script > &

nodiscard

The script that draws the piece, the first of its scripts

◆ getSize()

auto toast::VoxelPiece::getSize ( ) -> glm::vec3

nodiscard

Returns: the size of the grid in voxels

Here is the caller graph for this function:

◆ getVoxel()

auto toast::VoxelPiece::getVoxel ( glm::vec3 pos ) -> int

nodiscard

Returns: the palette ID at pos in the grid being drawn

◆ grid()

auto toast::VoxelPiece::grid ( ) -> const voxel::Volume *

nodiscard

The grid after the clip planes, rebuilt first when an input changed

Returns: null when there is nothing to draw

Note: Waits for a grid still drawing on another thread

Here is the caller graph for this function:

◆ gridBuilding()

auto toast::VoxelPiece::gridBuilding ( ) const -> bool

inlinenodiscardnoexcept

Returns: true while a worker is drawing the grid

◆ gridRef()

auto toast::VoxelPiece::gridRef ( ) -> GridRef

nodiscard

Like grid() but it keeps the grid alive while someone else reads it

Here is the caller graph for this function:

◆ gridStale()

auto toast::VoxelPiece::gridStale ( ) const -> bool

inlinenodiscardnoexcept

Returns: true when the grid is out of date, drawing or not

◆ inputRevision()

auto toast::VoxelPiece::inputRevision ( ) const -> uint32_t

inlinenodiscardnoexcept

Bumped whenever something that changes the grid or how it lands changes

◆ isMisaligned()

auto toast::VoxelPiece::isMisaligned ( ) const -> bool

inlinenodiscardnoexcept

Returns: true when the transform had to be snapped to the closest voxel and right angle

◆ markGridDirty()

void toast::VoxelPiece::markGridDirty ( )

protectednoexcept

The grid needs its script to run again

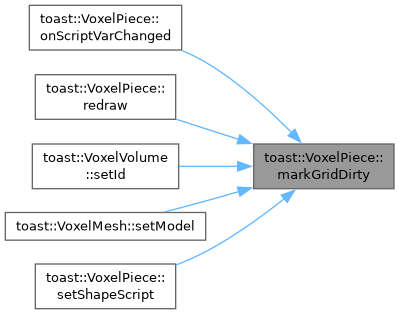

Here is the caller graph for this function:

◆ markLandingDirty()

void toast::VoxelPiece::markLandingDirty ( )

inlineprotectednoexcept

Only how the grid lands changed

Here is the caller graph for this function:

◆ nominalSize()

auto toast::VoxelPiece::nominalSize ( ) -> glm::ivec3

inlinenodiscard

The size in voxels the piece covers before any rotation

◆ onReflectedFieldChanged()

void toast::VoxelPiece::onReflectedFieldChanged ( std::string_view field_name )

overrideprotectedvirtual

Reimplemented from toast::Node.

◆ onScriptsReloaded()

void toast::VoxelPiece::onScriptsReloaded ( )

overrideprotectedvirtual

Reimplemented from toast::Node.

◆ onScriptsReloading()

void toast::VoxelPiece::onScriptsReloading ( )

overrideprotectedvirtual

Runs right before the script runtime is torn down and built again

Reimplemented from toast::Node.

◆ onScriptVarChanged()

void toast::VoxelPiece::onScriptVarChanged ( std::string_view path )

overrideprotectedvirtual

A script variable was edited from outside the script, path is "<instance>:<group/name>"

Reimplemented from toast::Node.

◆ pieceSize()

auto toast::VoxelPiece::pieceSize ( ) -> glm::ivec3

nodiscardprotectedvirtual

The size scripts draw into, the grid itself is rounded up to whole bricks

Reimplemented in toast::VoxelMesh, and toast::VoxelVolume.

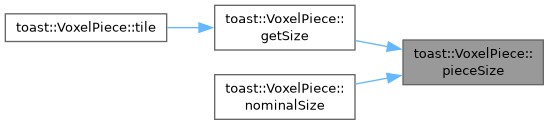

Here is the caller graph for this function:

◆ prepareGrid()

virtual auto toast::VoxelPiece::prepareGrid ( ) -> std::unique_ptr< voxel::Volume >

nodiscardprotectedpure virtual

A fresh grid for editShape to draw into

Implemented in toast::VoxelMesh, and toast::VoxelVolume.

◆ readyGrid()

auto toast::VoxelPiece::readyGrid ( ) -> GridRef

nodiscard

The newest grid there is without drawing or waiting, it can be out of date or null

◆ redraw()

void toast::VoxelPiece::redraw ( )

Runs editShape again on the next rebuild

Note: Only needed when the script reads something the piece cannot see change

◆ releaseGrid()

void toast::VoxelPiece::releaseGrid ( )

Frees the grids, the next grid() call rebuilds them

◆ requestGrid()

void toast::VoxelPiece::requestGrid ( )

Starts drawing the grid on a worker

◆ resizable()

virtual auto toast::VoxelPiece::resizable ( ) const -> bool

inlinenodiscardvirtualnoexcept

Volumes resize, meshes keep the size of their model

Reimplemented in toast::VoxelVolume.

◆ setMisaligned()

void toast::VoxelPiece::setMisaligned ( bool misaligned )

Set by the ProceduralVoxel when the transform had to be snapped to the voxel lattice

◆ setShapeScript()

void toast::VoxelPiece::setShapeScript ( assets::Handle< assets::Script > script )

Swaps the script that draws the piece and redraws it

◆ sourcePaletteUid()

virtual auto toast::VoxelPiece::sourcePaletteUid ( ) const -> uint64_t

inlinenodiscardvirtual

The palette the grid ids come from, 0 when they already are ProceduralVoxel ids

Reimplemented in toast::VoxelMesh.

◆ stamp()

void toast::VoxelPiece::stamp	(	const assets::Handle< assets::VoxelModel > &	asset,
		glm::vec3	pos,
		glm::quat	rotation = glm::quat(1.0f, 0.0f, 0.0f, 0.0f),
		voxel::WriteMode	mode = voxel::WriteMode::replace,
		int	match_id = 0 )

Drops a voxel model into the grid at pos

Note: Colors get matched to the ProceduralVoxel palette

◆ tile()

void toast::VoxelPiece::tile	(	const assets::Handle< assets::VoxelModel > &	asset,
		int	fit = 0,
		glm::vec3	anchor = glm::vec3(0.0f),
		glm::vec3	offset = glm::vec3(0.0f),
		glm::vec3	mirror = glm::vec3(0.0f),
		voxel::WriteMode	mode = voxel::WriteMode::replace,
		int	match_id = 0 )

Repeats the solid part of a voxel model across the whole grid

Parameters

fit	0 crop, 1 stretch, 2 center
anchor	Per axis 0 min, 1 center, 2 max
offset	Shifts the tiles by this many voxels
mirror	Per axis, non zero flips every other tile

◆ updateInspectorMessages()

void toast::VoxelPiece::updateInspectorMessages ( )

overrideprotectedvirtual

Reimplemented from toast::Node.

◆ waitForGrid()

void toast::VoxelPiece::waitForGrid ( )

Blocks until the worker drawing the grid is done and takes its grid

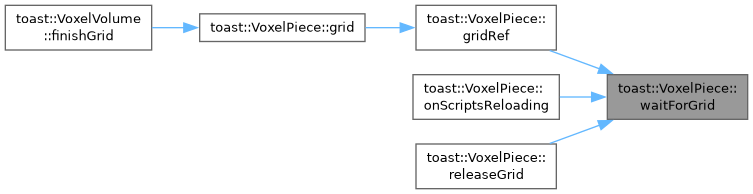

Here is the caller graph for this function:

Member Data Documentation

◆ m_clip_planes

std::vector<glm::vec4> toast::VoxelPiece::m_clip_planes

protected

Clip planes in piece voxels, a voxel is kept when dot(xyz, centre) + w >= 0

◆ m_shape_script

assets::Handle<assets::Script> toast::VoxelPiece::m_shape_script

protected

The script that draws the piece, it mirrors the first entry of the node scripts

The documentation for this class was generated from the following files:

engine/src/toast/voxel/nodes/voxel_piece.hpp
engine/src/toast/voxel/nodes/voxel_piece.cpp

Classes

Public Types

Public Member Functions

Public Attributes

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Member Function Documentation

◆ addClipPlane()

◆ buildCount()

◆ collectGrid()

◆ drawing()

◆ fillEllipsoid()

◆ fillRoundBox()

◆ finishGrid()

◆ getClipPlanes()

◆ getShape()

◆ getShapeBounds()

◆ getShapeScript()

◆ getSize()

◆ getVoxel()

◆ grid()

◆ gridBuilding()

◆ gridRef()

◆ gridStale()

◆ inputRevision()

◆ isMisaligned()

◆ markGridDirty()

◆ markLandingDirty()

◆ nominalSize()

◆ onReflectedFieldChanged()

◆ onScriptsReloaded()

◆ onScriptsReloading()

◆ onScriptVarChanged()

◆ pieceSize()

◆ prepareGrid()

◆ readyGrid()

◆ redraw()

◆ releaseGrid()

◆ requestGrid()

◆ resizable()

◆ setMisaligned()

◆ setShapeScript()

◆ sourcePaletteUid()

◆ stamp()

◆ tile()

◆ updateInspectorMessages()

◆ waitForGrid()

Member Data Documentation

◆ m_clip_planes

◆ m_shape_script
