toast::NodeInfo Struct Reference

Complete reflection record for a registered Node type. More...

#include <reflect_node.hpp>

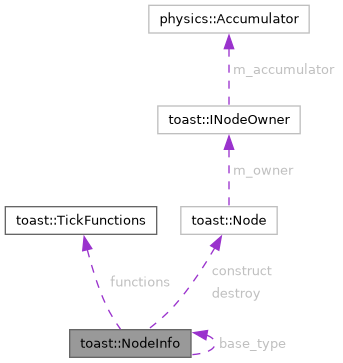

Collaboration diagram for toast::NodeInfo:

Public Types
using	Factory = Node* (*)()
using	Deleter = void (*)(Node*)

Public Member Functions
auto	getSignal (std::string_view field_name) const -> const SignalInfo *
	Finds a signal by name in this type's signals, then walks base_type if not found.
auto	getSignal (std::string_view declaring_type, std::string_view signal_name) const -> const SignalInfo *
template<typename F>
void	forEachSignal (F &&callback) const
auto	getField (std::string_view field_name) const -> const FieldInfo *
	Finds a field by name in this type's all_fields, then walks base_type if not found.
auto	getMethod (std::string_view method_name) const -> const FunctionInfo *
	Finds a reflected function by name in this type, then walks base_type if not found.
template<typename R = void, typename... Args>
auto	call (void *obj, std::string_view method_name, Args &&... args) const -> R
	Walks base->derived calling every inheritance level that defines method_name, then fires Lua scripts.
auto	callAllDynamic (void *obj, std::string_view method_name, std::span< const std::any > args) const -> std::any
	Walks base->derived via dynamic invokers, calling every level that defines method_name.
auto	isA (const NodeInfo *other) const -> bool
	Checks whether this type is the same as or a subtype of another.
auto	hasFunction (TickFunctionList mask) const -> bool
	Checks whether this type or any base type implements the given lifecycle phase(s).
constexpr auto	id () const -> uint32_t
	FNV-1a hash of the type string; not the same as a Node's runtime UID.
auto	getGroup (std::string_view group_name) const -> const GroupInfo *
	Finds a group by name, walking base_type if not found.
auto	search (std::string_view field_name) const -> const FieldInfo *
	Finds a field by name, walking the full inheritance chain.
template<typename F>
void	forEachBaseType (F &&fn) const
	Calls fn for each NodeInfo in the inheritance chain, from the root base down to this type.

Public Attributes
std::string_view	type
const NodeInfo *	base_type
std::span< const SignalInfo >	signals
std::span< const FieldInfo >	all_fields
std::span< const FieldInfo *const >	fields
std::span< const GroupInfo >	groups
std::span< const FunctionInfo >	methods
TickFunctions	functions
Factory	construct = nullptr
Deleter	destroy = nullptr

Detailed Description

Complete reflection record for a registered Node type.

Populated by the generated Reflect<T> specialization at program startup. base_type chains through C++ inheritance so that field lookups and isA() checks traverse the full type hierarchy without RTTI.

Note

NodeInfo instances are static globals; comparing two NodeInfo pointers for equality is a valid way to test for identical types

Member Function Documentation

call()

template<typename R = void, typename... Args>

auto toast::NodeInfo::call ( void * obj, std::string_view method_name, Args &&... args ) const -> R

inline

Walks base->derived calling every inheritance level that defines method_name, then fires Lua scripts.

Returns

the most-derived level's return value

callAllDynamic()

auto toast::NodeInfo::callAllDynamic ( void * obj, std::string_view method_name, std::span< const std::any > args ) const -> std::any

inlinenodiscard

Walks base->derived via dynamic invokers, calling every level that defines method_name.

Returns

the most-derived level's return value

forEachBaseType()

template<typename F>

void toast::NodeInfo::forEachBaseType ( F && fn ) const

inline

Calls fn for each NodeInfo in the inheritance chain, from the root base down to this type.

Parameters

fn	Callable taking a const NodeInfo&; called once per type in base-first order

Note

Useful for collecting all fields including inherited ones without duplicates

getField()

auto toast::NodeInfo::getField ( std::string_view field_name ) const -> const FieldInfo *

inlinenodiscard

Finds a field by name in this type's all_fields, then walks base_type if not found.

Parameters

field_name

The reflected field name to look up

Returns

Pointer to the matching FieldInfo, or nullptr if the field is not reflected anywhere in the hierarchy

getGroup()

auto toast::NodeInfo::getGroup ( std::string_view group_name ) const -> const GroupInfo *

inlinenodiscard

Finds a group by name, walking base_type if not found.

Parameters

group_name

The group name to look up

Returns

Pointer to the matching GroupInfo, or nullptr if no such group exists in this type or its bases

getMethod()

auto toast::NodeInfo::getMethod ( std::string_view method_name ) const -> const FunctionInfo *

inlinenodiscard

Finds a reflected function by name in this type, then walks base_type if not found.

Parameters

method_name

The reflected function name to look up

Returns

Pointer to the matching FunctionInfo, or nullptr if the function is not reflected anywhere in the hierarchy

Here is the caller graph for this function:

getSignal()

auto toast::NodeInfo::getSignal ( std::string_view field_name ) const -> const SignalInfo *

inlinenodiscard

Finds a signal by name in this type's signals, then walks base_type if not found.

Parameters

signal_name

The reflected signal name to look up

Returns

Pointer to the matching SignalInfo, or nullptr if the signal is not reflected anywhere in the hierarchy

hasFunction()

auto toast::NodeInfo::hasFunction ( TickFunctionList mask ) const -> bool

inlinenodiscard

Checks whether this type or any base type implements the given lifecycle phase(s).

Parameters

mask	A TickFunctionList bitflag; use tick_mask to check for any per-frame phase

Returns

true if any bit in mask is set in functions.list anywhere in the inheritance chain

isA()

auto toast::NodeInfo::isA ( const NodeInfo * other ) const -> bool

inlinenodiscard

Checks whether this type is the same as or a subtype of another.

Parameters

other

The NodeInfo to test against

Returns

true if this type's inheritance chain passes through other; equivalent to dynamic_cast but without RTTI

search()

auto toast::NodeInfo::search ( std::string_view field_name ) const -> const FieldInfo *

inlinenodiscard

Finds a field by name, walking the full inheritance chain.

Parameters

field_name

The reflected field name to look up

Returns

Pointer to the matching FieldInfo, or nullptr if not found

Note

Prefer getField() for new code; this is an alias kept for backwards compatibility

---

The documentation for this struct was generated from the following file:

• engine/src/toast/reflect/reflect_node.hpp
