procedural_voxel.hpp File Reference

Voxel shapes built from an ordered list of volumes. More...

#include "voxel_bucket.hpp"
#include "voxel_group.hpp"
#include "voxel_node.hpp"
#include "voxel_piece.hpp"
#include "voxel_volume.hpp"
#include <cstdint>
#include <future>
#include <memory>
#include <optional>
#include <span>
#include <toast/voxel/stamp.hpp>
#include <toast/voxel/voxel_edit.hpp>
#include <unordered_map>
#include <vector>

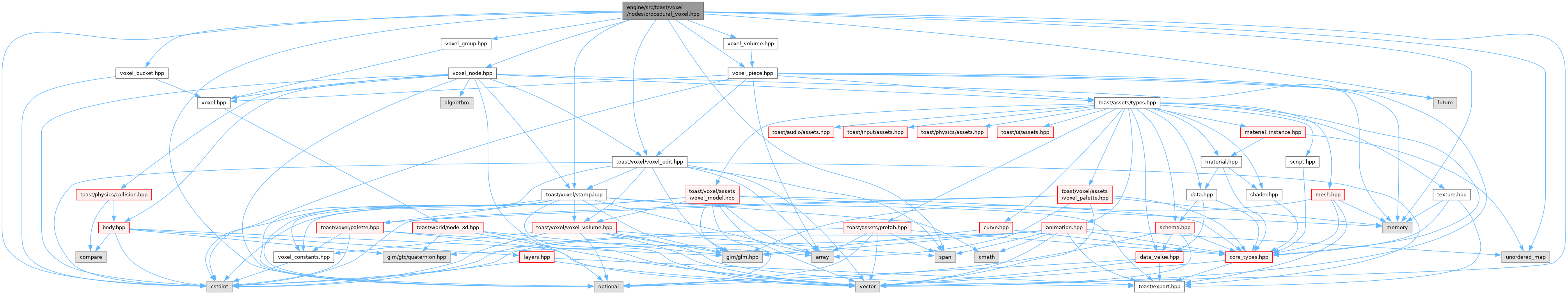

Include dependency graph for procedural_voxel.hpp:

Go to the source code of this file.

Classes
class	toast::ProceduralVoxel
struct	toast::ProceduralVoxel::PieceLayout
struct	toast::ProceduralVoxel::Composed

Functions
auto	toast::insideProceduralVoxel (Node &node) -> bool
auto	toast::owningProceduralVoxel (Node &node) -> ProceduralVoxel *
auto	toast::parentToShape (Node &node) -> glm::mat4
auto	toast::piecePlacement (VoxelPiece &piece) -> voxel::LatticePlacement
auto	toast::pieceBounds (VoxelPiece &piece) -> voxel::EditBounds
void	toast::placePiece (VoxelPiece &piece, const voxel::LatticeOrientation &orientation, glm::ivec3 min, glm::ivec3 max)
auto	toast::planeToShape (glm::vec4 plane, const voxel::LatticePlacement &placement) noexcept -> glm::vec4
auto	toast::planeToPiece (glm::vec4 plane, const voxel::LatticePlacement &placement) noexcept -> glm::vec4

Detailed Description

Voxel shapes built from an ordered list of volumes.

Author

Xein

Date

26 Sep 2026

A ProceduralVoxel rebuilds its shape from its children, top to bottom Groups are walked depth first and disabled children are skipped

Every piece draws into its own grid with its first script's editShape The grid is cached so moving, rotating or reordering pieces never runs a script again

Function Documentation

insideProceduralVoxel()

TOAST_API auto toast::insideProceduralVoxel ( Node & node ) -> bool

nodiscard

Returns

true when node sits in a ProceduralVoxel, through any groups

owningProceduralVoxel()

TOAST_API auto toast::owningProceduralVoxel ( Node & node ) -> ProceduralVoxel *

nodiscard

The ProceduralVoxel node is built into, through any groups, null when there is none

parentToShape()

TOAST_API auto toast::parentToShape ( Node & node ) -> glm::mat4

nodiscard

The transform from node's parent to its ProceduralVoxel, in metres

pieceBounds()

TOAST_API auto toast::pieceBounds ( VoxelPiece & piece ) -> voxel::EditBounds

nodiscard

The box the piece covers on the shape, its size and not the brick rounded grid

piecePlacement()

TOAST_API auto toast::piecePlacement ( VoxelPiece & piece ) -> voxel::LatticePlacement

nodiscard

Where the piece grid lands on the shape, snapped to the lattice

placePiece()

TOAST_API void toast::placePiece	(	VoxelPiece &	piece,
		const voxel::LatticeOrientation &	orientation,
		glm::ivec3	min,
		glm::ivec3	max )

Moves and resizes piece so it covers min..max with orientation

Note

A VoxelMesh cannot resize so it keeps its size with its corner at min

planeToPiece()

TOAST_API auto toast::planeToPiece ( glm::vec4 plane, const voxel::LatticePlacement & placement ) -> glm::vec4

nodiscardnoexcept

A clip plane from shape voxels to piece voxels

planeToShape()

TOAST_API auto toast::planeToShape ( glm::vec4 plane, const voxel::LatticePlacement & placement ) -> glm::vec4

nodiscardnoexcept

A clip plane from piece voxels to shape voxels
