Functions that allow the editing of Voxel Volumes. More...

#include "stamp.hpp"
#include "voxel_volume.hpp"
#include <array>
#include <cstdint>
#include <glm/glm.hpp>
#include <optional>
#include <span>
#include <toast/export.hpp>
#include <vector>

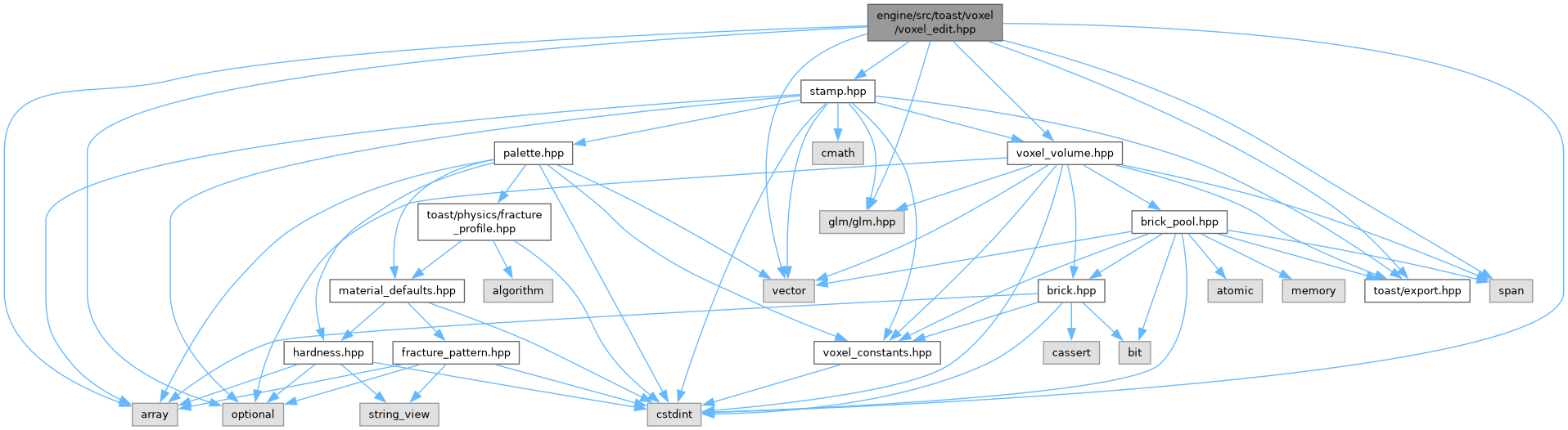

Include dependency graph for voxel_edit.hpp:

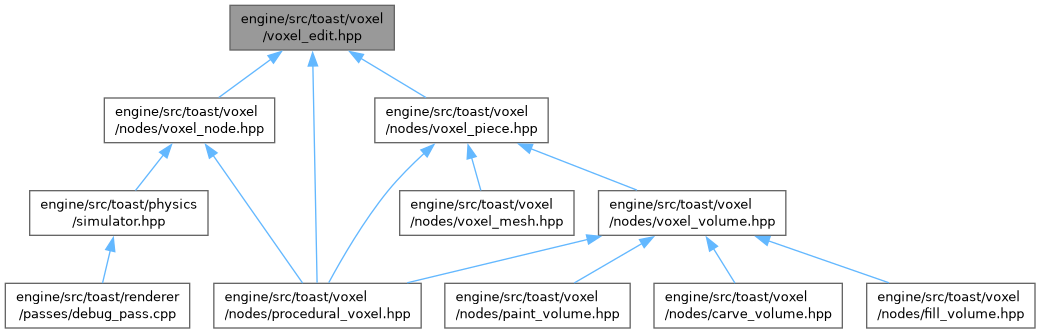

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	voxel::EditBounds
struct	voxel::EditResult
struct	voxel::WriteBrush
struct	voxel::Region
struct	voxel::TileOptions
struct	voxel::VolumeHit

Enumerations
enum class	voxel::WriteMode : uint8_t { replace , empty_only , solid_only , match }
	Which voxels we should override. More...
enum class	TileFit : uint8_t { crop , stretch , center }
enum class	TileAnchor : uint8_t { min , center , max }

Functions
constexpr auto	voxel::canWrite (uint8_t current, WriteMode mode, uint8_t match_id) noexcept -> bool
constexpr auto	voxel::canAdd (uint8_t id, WriteMode mode, uint8_t match_id) noexcept -> bool
auto	voxel::boxBounds (glm::ivec3 a, glm::ivec3 b) noexcept -> EditBounds
auto	voxel::sphereBounds (glm::vec3 center, float radius) noexcept -> EditBounds
auto	voxel::segmentBounds (glm::vec3 a, glm::vec3 b, float radius) noexcept -> EditBounds
auto	voxel::placedBounds (glm::uvec3 piece_brick_dims, const LatticePlacement &placement) noexcept -> EditBounds
auto	voxel::boundsUnion (const EditBounds &a, const EditBounds &b) noexcept -> EditBounds
auto	voxel::occupiedBounds (const Volume &volume) -> std::optional< EditBounds >
auto	voxel::fillBox (Volume &volume, glm::ivec3 a, glm::ivec3 b, const WriteBrush &brush) -> EditResult
auto	voxel::fillSphere (Volume &volume, glm::vec3 center, float radius, const WriteBrush &brush) -> EditResult
auto	voxel::fillCylinder (Volume &volume, glm::vec3 a, glm::vec3 b, float radius, const WriteBrush &brush) -> EditResult
auto	voxel::fillCapsule (Volume &volume, glm::vec3 a, glm::vec3 b, float radius, const WriteBrush &brush) -> EditResult
auto	voxel::replaceId (Volume &volume, uint8_t from, uint8_t to) -> EditResult
auto	voxel::slice (Volume &volume, glm::vec3 point, glm::vec3 normal, int side) -> EditResult
auto	voxel::collectFace (const Volume &volume, glm::ivec3 start, glm::ivec3 normal, size_t limit) -> std::vector< glm::ivec3 >
auto	voxel::extrudeFace (Volume &volume, std::span< const glm::ivec3 > face, glm::ivec3 normal, int distance) -> EditResult
auto	voxel::copyRegion (const Volume &volume, glm::ivec3 a, glm::ivec3 b) -> Region
auto	voxel::pasteRegion (Volume &volume, const Region &region, glm::ivec3 at, WriteMode mode, uint8_t match_id) -> EditResult
auto	voxel::stampVolume (Volume &target, const Volume &piece, const LatticePlacement &placement, const PaletteRemapTable &remap, WriteMode mode, uint8_t match_id) -> EditResult
auto	voxel::carveVolume (Volume &target, const Volume &piece, const LatticePlacement &placement) -> EditResult
auto	voxel::fillRoundBox (Volume &volume, glm::ivec3 a, glm::ivec3 b, float radius, const WriteBrush &brush) -> EditResult
auto	voxel::fillEllipsoid (Volume &volume, glm::ivec3 a, glm::ivec3 b, const WriteBrush &brush) -> EditResult
auto	voxel::clipByPlanes (Volume &volume, std::span< const glm::vec4 > planes) -> EditResult
auto	voxel::complementPlane (glm::vec4 plane) noexcept -> glm::vec4
auto	voxel::tileVolume (Volume &target, const Volume &pattern, glm::ivec3 a, glm::ivec3 b, const TileOptions &options, const PaletteRemapTable &remap, WriteMode mode, uint8_t match_id) -> EditResult
auto	voxel::floodFill (Volume &volume, glm::ivec3 seed, uint8_t id) -> EditResult
auto	voxel::raycast (const Volume &volume, glm::vec3 origin, glm::vec3 direction, float max_t) -> std::optional< VolumeHit >
auto	voxel::idHistogram (const Volume &volume) -> std::array< uint32_t, k_palette_size >
auto	voxel::snapOrientation (const glm::mat3 &rotation) noexcept -> LatticeOrientation
auto	voxel::dominantAxis (glm::vec3 normal) noexcept -> glm::ivec3

Detailed Description

Functions that allow the editing of Voxel Volumes.

Author: Xein

Date: 25 Sep 2026

Enumeration Type Documentation

◆ WriteMode

enum class voxel::WriteMode : uint8_t

strong

Which voxels we should override.

Note: On lua this is called VoxelWrite

Enumerator
replace	Everything.
empty_only	Only empty space.
solid_only	Only non-empty space.
match	Only voxels with the match id.

Function Documentation

◆ carveVolume()

TOAST_API auto voxel::carveVolume	(	Volume &	target,
		const Volume &	piece,
		const LatticePlacement &	placement ) -> EditResult

Empties every target voxel the piece has a solid voxel on

Note: The carve counterpart of stampVolume

◆ clipByPlanes()

TOAST_API auto voxel::clipByPlanes	(	Volume &	volume,
		std::span< const glm::vec4 >	planes ) -> EditResult

Empties every voxel that is on the wrong side of any plane

◆ collectFace()

TOAST_API auto voxel::collectFace	(	const Volume &	volume,
		glm::ivec3	start,
		glm::ivec3	normal,
		size_t	limit = size_t {1}<< 20 ) -> std::vector< glm::ivec3 >

nodiscard

Returns the voxels with the same normal

◆ complementPlane()

TOAST_API auto voxel::complementPlane ( glm::vec4 plane ) -> glm::vec4

nodiscardnoexcept

The plane that keeps what plane drops

◆ extrudeFace()

TOAST_API auto voxel::extrudeFace	(	Volume &	volume,
		std::span< const glm::ivec3 >	face,
		glm::ivec3	normal,
		int	distance ) -> EditResult

Pushes a face out along its normal, carves when negative distance

◆ fillEllipsoid()

TOAST_API auto voxel::fillEllipsoid	(	Volume &	volume,
		glm::ivec3	a,
		glm::ivec3	b,
		const WriteBrush &	brush ) -> EditResult

Fills the ellipsoid that touches every face of the box from a to b

◆ fillRoundBox()

TOAST_API auto voxel::fillRoundBox	(	Volume &	volume,
		glm::ivec3	a,
		glm::ivec3	b,
		float	radius,
		const WriteBrush &	brush ) -> EditResult

Fills the box from a to b with its edges rounded by radius

◆ floodFill()

TOAST_API auto voxel::floodFill	(	Volume &	volume,
		glm::ivec3	seed,
		uint8_t	id ) -> EditResult

Repaints the solid voxels connected to seed that share its id

◆ idHistogram()

TOAST_API auto voxel::idHistogram ( const Volume & volume ) -> std::array< uint32_t, k_palette_size >

nodiscard

How many voxels hold each palette id

◆ raycast()

TOAST_API auto voxel::raycast	(	const Volume &	volume,
		glm::vec3	origin,
		glm::vec3	direction,
		float	max_t ) -> std::optional< VolumeHit >

nodiscard

Walks a ray through the volume one voxel at a time

Parameters

origin In voxels, a voxel spans [v, v + 1]

Returns: the first solid voxel within max_t

◆ replaceId()

TOAST_API auto voxel::replaceId	(	Volume &	volume,
		uint8_t	from,
		uint8_t	to ) -> EditResult

Replaces all of the nodes of one ID to another

Parameters

from	Target palette ID
to	New palette ID

◆ slice()

TOAST_API auto voxel::slice	(	Volume &	volume,
		glm::vec3	point,
		glm::vec3	normal,
		int	side ) -> EditResult

Cuts a volume by a plane

Parameters

point	Point of the plane
normal	Normal of the plane
side	+1 (normal direction) or -1 (antinormal direction)

◆ tileVolume()

TOAST_API auto voxel::tileVolume	(	Volume &	target,
		const Volume &	pattern,
		glm::ivec3	a,
		glm::ivec3	b,
		const TileOptions &	options,
		const PaletteRemapTable &	remap,
		WriteMode	mode = WriteMode::replace,
		uint8_t	match_id = k_empty_palette_index ) -> EditResult

Repeats the solid part of pattern across the box from a to b

Parameters

remap Maps pattern ids to target ids and 0 skips the voxel
