Inheritance diagram for toast::INodeOwner:

[legend]

Collaboration diagram for toast::INodeOwner:

Classes
struct	InstantiateContext

Public Member Functions
virtual auto	name () -> std::string=0
virtual void	tick ()=0
virtual auto	asWorkspace () -> Workspace *
	Downcast helper for owners that need Workspace-specific state.
virtual auto	participatesIn (NodeOwnerParticipation use) const noexcept -> bool=0
	Determines if this owner is elegible for runtime systems.
virtual auto	receivesEvents () const noexcept -> bool
void	syncListenerState () noexcept
auto	isEditing () noexcept -> bool
	True for a Workspace open for editing: lifecycle callbacks still run there, but the game is not running.
auto	treeMutex () const noexcept -> std::shared_mutex &
virtual void	registerDependency (Node &from, Node &to)=0
virtual void	unregisterDependency (Node &from, Node &to)=0
virtual void	registerInteraction (Node &, Node &)
virtual void	nodeEnabledChanged (Node &node) noexcept
virtual auto	findFrom (const Node &origin, std::string_view query) -> Box< Node >=0
virtual auto	findFrom (const Node &origin, const UID &uid) -> Box< Node >=0
virtual auto	searchFrom (const Node &origin, std::string_view query) -> std::vector< Box< Node > >=0
void	activateCamera (Camera &camera)
void	setMainCamera (Camera &camera)
	Like activateCamera(), but replaces whatever camera is currently active.
void	deactivateCamera (Camera &camera)
void	activateCameraController (CameraController &controller)
void	deactivateCameraController (CameraController &controller)
auto	requestRuntimeCreate (Node &parent, std::string_view type) -> Box< Node >
auto	requestRuntimeSpawn (Node &parent, UID uid) -> Box< Node >
auto	requestRuntimeSpawn (Node &parent, std::string_view) -> Box< Node >
void	reloadScriptsUsing (UID script_uid) noexcept
void	refreshNodeInfos () noexcept
void	rebindAssetHandles (UID asset_uid) noexcept

Static Public Member Functions
static void	reapOrphanedControlBoxes () noexcept

Protected Member Functions
virtual auto	owningPrefabUid () const -> UID
void	seedPrefabContext (InstantiateContext &context, const Node *parent=nullptr) const
auto	nodeAllocation (std::string_view type="toast::Node") noexcept -> Box< Node >
	Allocates a Node and its ControlBox in one contiguous block.
auto	nodeAllocation (const assets::Prefab::BasicNode &node_data, uint64_t script_group=0, bool build_scripts=true) noexcept -> Box< Node >
	Allocates a Node and initializes its name and type from a prefab data record.
void	buildLeaves (const assets::Handle< assets::Prefab > &file, uint64_t group, const std::vector< size_t > &leaf_slots, std::vector< Box< Node > > &slots)
auto	buildTree (std::vector< Box< Node > > &&nodes, const assets::Handle< assets::Prefab > &file) -> Box< Node >
	Assembles a flat list of allocated nodes into a parent/child tree.
auto	instantiate (const assets::Handle< assets::Prefab > &file, InstantiateContext &ctx) -> Box< Node >
	Allocates and initializes a full node tree from a prefab asset.
void	applyFields (Node &node, const assets::Prefab::BasicNode &data)
	Copies reflected field values from the serialized BasicNode onto the live node; skips fields absent from NodeInfo.
void	applyLuaOverrides (Node &node, const assets::Prefab::BasicNode &data, const scripting::NodeResolver &find_node)
	Restores edited Lua script variables saved in the prefab.
void	releaseNode (_detail::ControlBox &control) noexcept
	Marks the ControlBox as dead and increments tombstones; does not free memory.
void	reapTombstones () noexcept
	Sweeps the nodes set and erases any ControlBox whose ref count is zero; short-circuits if tombstones == 0.
void	findCamera ()
void	findCameraController ()
void	tickActiveCameraController ()
void	beginCameraShutdown () noexcept
auto	activeCamera () noexcept -> Box< Camera > &
auto	activeRenderCamera () noexcept -> Camera *
virtual void	applyActiveCamera ()=0
template<typename Fn>
void	forEachNode (Fn &&fn) const

Static Protected Member Functions
static void	updateTransforms (Node &root)
static void	generateUid (Node &node)
	Assigns a fresh UID to the node; called on every spawned instance to avoid UID collisions.
static auto	stripNamespace (std::string_view type) -> std::string_view
	Removes the "toast::" namespace prefix from a type name; used to derive default display names.
static auto	uniqueChildName (const Node &parent, std::string_view base) -> std::string
	Appends " 2", " 3", etc. to base until the name is unique among the parent's existing children.

Protected Attributes
std::mutex	nodes_mutex
size_t	tombstones = 0
	short-circuits the reap sweep when there's nothing to clean
physics::Accumulator	m_accumulator

Friends
class	CameraController

Member Function Documentation

◆ asWorkspace()

virtual auto toast::INodeOwner::asWorkspace ( ) -> Workspace *

inlinevirtual

Downcast helper for owners that need Workspace-specific state.

Reimplemented in toast::Workspace.

Here is the caller graph for this function:

◆ buildTree()

auto toast::INodeOwner::buildTree	(	std::vector< Box< Node > > &&	nodes,
		const assets::Handle< assets::Prefab > &	file ) -> Box< Node >

protected

Assembles a flat list of allocated nodes into a parent/child tree.

Parameters

nodes	Flat list in prefab file order; index 0 becomes the tree root
file	The source prefab, kept alive until all Handle fields are resolved

Returns: The root Box<Node>

Here is the caller graph for this function:

◆ findFrom() [1/2]

virtual auto toast::INodeOwner::findFrom	(	const Node &	origin,
		const UID &	uid ) -> Box< Node >

pure virtual

Implemented in toast::Workspace.

◆ findFrom() [2/2]

virtual auto toast::INodeOwner::findFrom	(	const Node &	origin,
		std::string_view	query ) -> Box< Node >

pure virtual

Implemented in toast::Workspace.

◆ instantiate()

auto toast::INodeOwner::instantiate	(	const assets::Handle< assets::Prefab > &	file,
		InstantiateContext &	ctx ) -> Box< Node >

protected

Allocates and initializes a full node tree from a prefab asset.

Allocates every node, resolves embedded child prefabs recursively via ctx.resolver, and calls load on each node before returning

Parameters

file	The prefab to instantiate
ctx	Resolver for child prefabs and the asset chain used for cycle detection; asset_chain is mutated during the call and restored on return

Returns: The root of the new tree, or an empty box if instantiation fails

Here is the caller graph for this function:

◆ nodeAllocation() [1/2]

auto toast::INodeOwner::nodeAllocation	(	const assets::Prefab::BasicNode &	node_data,
		uint64_t	script_group = 0,
		bool	build_scripts = true ) -> Box< Node >

protectednoexcept

Allocates a Node and initializes its name and type from a prefab data record.

Parameters

node_data The BasicNode entry from the prefab file

Returns: Owning Box<Node>; the node is in NodeState::null until explicitly placed in a tree

◆ nodeAllocation() [2/2]

auto toast::INodeOwner::nodeAllocation ( std::string_view type = "toast::Node" ) -> Box< Node >

protectednoexcept

Allocates a Node and its ControlBox in one contiguous block.

Parameters

type	Fully-qualified C++ class name looked up in NodeRegistry to find the factory; defaults to "toast::Node"

Returns: Owning Box<Node>; the node is in NodeState::null until explicitly placed in a tree

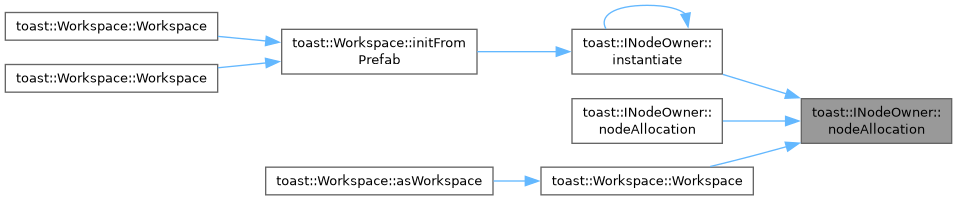

Here is the caller graph for this function:

◆ participatesIn()

virtual auto toast::INodeOwner::participatesIn ( NodeOwnerParticipation use ) const -> bool

nodiscardpure virtualnoexcept

Determines if this owner is elegible for runtime systems.

Implemented in toast::PlayWorkspace, toast::Workspace, and toast::World.

◆ receivesEvents()

virtual auto toast::INodeOwner::receivesEvents ( ) const -> bool

inlinenodiscardvirtualnoexcept

Returns: false when silenced

Reimplemented in toast::PlayWorkspace, and toast::Workspace.

Here is the caller graph for this function:

◆ registerDependency()

virtual void toast::INodeOwner::registerDependency	(	Node &	from,
		Node &	to )

pure virtual

Implemented in toast::Workspace, and toast::World.

◆ searchFrom()

virtual auto toast::INodeOwner::searchFrom	(	const Node &	origin,
		std::string_view	query ) -> std::vector< Box< Node > >

pure virtual

Implemented in toast::Workspace.

◆ tick()

virtual void toast::INodeOwner::tick ( )

pure virtual

Implemented in toast::Workspace.

The documentation for this class was generated from the following files:

engine/src/toast/world/node_owner.hpp
engine/src/toast/world/node_owner.cpp
