Single-viewport node owner used by the editor. More...

#include <workspace.hpp>

Inheritance diagram for toast::Workspace:

[legend]

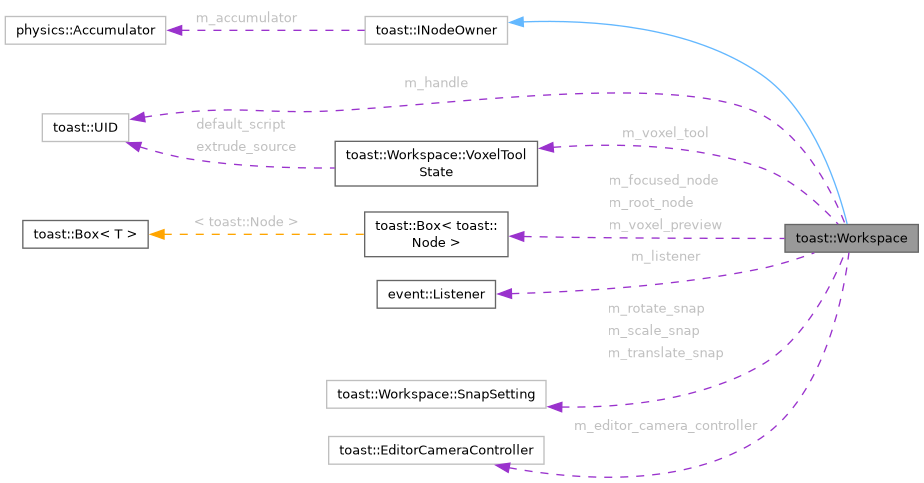

Collaboration diagram for toast::Workspace:

[legend]

Classes
struct	SizeHandlePoint
struct	EmptyTag
	disambiguates the protected ctor from Workspace(UID) More...
struct	SnapSetting
struct	VoxelToolState
struct	GizmoRenderState

Public Member Functions
	Workspace (std::string_view type, UID handle)
	Creates a new workspace rooted at a single fresh node of the given type.
	Workspace (UID uid)
	Opens an existing workspace by loading the prefab at the given UID.
	Workspace (UID uid, std::string_view source_uri)
	Opens a workspace bound to the given asset UID but loading its content from another file.
auto	name () -> std::string override
auto	asWorkspace () -> Workspace *override
	Downcast helper for owners that need Workspace-specific state.
void	registerDependency (Node &from, Node &to) override
	No-op; Workspace has no tick scheduler and never registers dependencies.
void	unregisterDependency (Node &from, Node &to) override
void	nodeEnabledChanged (Node &node) noexcept override
auto	participatesIn (NodeOwnerParticipation use) const noexcept -> bool override
	Determines if this owner is elegible for runtime systems.
auto	receivesEvents () const noexcept -> bool override
auto	findFrom (const Node &origin, std::string_view query) -> Box< Node > override
	Name lookup over origin's subtree.
auto	findFrom (const Node &origin, const UID &uid) -> Box< Node > override
	UID lookup over origin's subtree.
auto	searchFrom (const Node &origin, std::string_view query) -> std::vector< Box< Node > > override
	Same query grammar as World::searchFrom(); searches only within m_root_node.
virtual auto	isPlaying () const -> bool
	True for PlayWorkspace, gates gizmo interaction off so it can never run against a live game.
auto	usesGameCamera () const noexcept -> bool
void	inheritEditorCamera (const Workspace &source)
void	preparePrefabReload (UID uid)
void	finishPrefabReload ()
void	tick () override
	Editor-only per-frame work: camera preview, animation preview, editorTick lifecycle, inspector streaming.
auto	rootNode () const -> const Node &
auto	isValid () const -> bool
auto	findPrefabInstance (UID prefab, UID instance) -> Box< Node >
auto	gizmoRenderState () const -> GizmoRenderState
	snapshot of the active gizmo's transform/highlight state, resolved on the main thread for Engine::tick() to hand to VulkanRenderer
Public Member Functions inherited from toast::INodeOwner
void	syncListenerState () noexcept
auto	isEditing () noexcept -> bool
	True for a Workspace open for editing: lifecycle callbacks still run there, but the game is not running.
auto	treeMutex () const noexcept -> std::shared_mutex &
virtual void	registerInteraction (Node &, Node &)
void	activateCamera (Camera &camera)
void	setMainCamera (Camera &camera)
	Like activateCamera(), but replaces whatever camera is currently active.
void	deactivateCamera (Camera &camera)
void	activateCameraController (CameraController &controller)
void	deactivateCameraController (CameraController &controller)
auto	requestRuntimeCreate (Node &parent, std::string_view type) -> Box< Node >
auto	requestRuntimeSpawn (Node &parent, UID uid) -> Box< Node >
auto	requestRuntimeSpawn (Node &parent, std::string_view) -> Box< Node >
void	reloadScriptsUsing (UID script_uid) noexcept
void	refreshNodeInfos () noexcept
void	rebindAssetHandles (UID asset_uid) noexcept

Static Public Attributes
static constexpr size_t	k_max_size_handles = 6

Protected Member Functions
auto	owningPrefabUid () const -> UID override
	Workspace (UID handle, EmptyTag)
	Sets only the handle and subscribes to editor events; used by PlayWorkspace.
void	sendEnabledChanges ()
auto	isActiveWorkspace () const noexcept -> bool
auto	gizmoOrigin () const -> glm::vec3
auto	gizmoOrientation () const -> glm::quat
auto	gizmoScale () const -> float
auto	gizmoInteractionAllowed () const -> bool
auto	collectSizeHandles () const -> std::pair< std::array< SizeHandlePoint, k_max_size_handles >, uint32_t >
void	gizmoApplySizeDrag (float delta)
void	gizmoUpdateHover ()
void	gizmoBeginDrag (GizmoHandle handle)
void	gizmoUpdateDrag ()
void	gizmoEndDrag ()
void	eventSubscriptions ()
void	initializeHistory (bool available, bool initially_saved)
auto	restoreHistorySnapshot (const assets::Prefab &snapshot) -> bool
void	destroyOwnedTree (Box< Node > &root)
auto	duplicateNode (Box< Node > src, Box< Node > par, bool after_source) -> Box< Node >
void	subscribeVoxelEditing ()
void	voxelUpdatePreview (uint8_t kind)
void	voxelReparent (Box< Node > node, Box< Node > parent, size_t index)
auto	voxelWrapInGroup (Box< Node > node, std::string_view name) -> Box< Node >
auto	voxelToolShape () -> ProceduralVoxel *
void	voxelToolMouseMove ()
auto	voxelToolMouseButton (uint32_t button, bool pressed, int mods) -> bool
void	voxelToolCancel ()
auto	pickNodeUnderMouse () -> Box< Node >
auto	retypeNode (Box< Node > &target, std::string_view type, bool keep_fields) -> Box< Node >
void	promoteNode (Box< Node > &target, std::string_view path)
template<typename F>
void	recordHistory (WorkspaceHistory::Context context, F &&mutation)
void	initFromPrefab (const assets::Handle< assets::Prefab > &file)
	instantiates the prefab and sets up the root node
void	applyActiveCamera () override
Protected Member Functions inherited from toast::INodeOwner
void	seedPrefabContext (InstantiateContext &context, const Node *parent=nullptr) const
auto	nodeAllocation (std::string_view type="toast::Node") noexcept -> Box< Node >
	Allocates a Node and its ControlBox in one contiguous block.
auto	nodeAllocation (const assets::Prefab::BasicNode &node_data, uint64_t script_group=0, bool build_scripts=true) noexcept -> Box< Node >
	Allocates a Node and initializes its name and type from a prefab data record.
void	buildLeaves (const assets::Handle< assets::Prefab > &file, uint64_t group, const std::vector< size_t > &leaf_slots, std::vector< Box< Node > > &slots)
auto	buildTree (std::vector< Box< Node > > &&nodes, const assets::Handle< assets::Prefab > &file) -> Box< Node >
	Assembles a flat list of allocated nodes into a parent/child tree.
auto	instantiate (const assets::Handle< assets::Prefab > &file, InstantiateContext &ctx) -> Box< Node >
	Allocates and initializes a full node tree from a prefab asset.
void	applyFields (Node &node, const assets::Prefab::BasicNode &data)
	Copies reflected field values from the serialized BasicNode onto the live node; skips fields absent from NodeInfo.
void	applyLuaOverrides (Node &node, const assets::Prefab::BasicNode &data, const scripting::NodeResolver &find_node)
	Restores edited Lua script variables saved in the prefab.
void	releaseNode (_detail::ControlBox &control) noexcept
	Marks the ControlBox as dead and increments tombstones; does not free memory.
void	reapTombstones () noexcept
	Sweeps the nodes set and erases any ControlBox whose ref count is zero; short-circuits if tombstones == 0.
void	findCamera ()
void	findCameraController ()
void	tickActiveCameraController ()
void	beginCameraShutdown () noexcept
auto	activeCamera () noexcept -> Box< Camera > &
auto	activeRenderCamera () noexcept -> Camera *
template<typename Fn>
void	forEachNode (Fn &&fn) const

Protected Attributes
UID	m_handle
std::unique_ptr< assets::Prefab >	m_owned_source_prefab
Box< Node >	m_root_node
Box< Node >	m_focused_node
event::Listener	m_listener
GizmoTool	m_gizmo_tool = GizmoTool::select
bool	m_world_space = false
	false = local coordinates
SnapSetting	m_translate_snap {true, 0.10f}
SnapSetting	m_rotate_snap {true, 30.0f}
SnapSetting	m_scale_snap {true, 0.10f}
bool	m_game_camera = false
	false = editor camera
std::unique_ptr< Camera >	m_editor_camera
EditorCameraController	m_editor_camera_controller
	drives m_editor_camera; ticked from tick() below
std::unique_ptr< WorkspaceHistory >	m_history
std::mutex	m_enabled_changes_mutex
std::vector< Box< Node > >	m_enabled_changes
glm::vec2	m_gizmo_mouse_pos {0.0f, 0.0f}
	The gizmo's current state.
GizmoHandle	m_gizmo_hover = GizmoHandle::none
GizmoHandle	m_gizmo_drag = GizmoHandle::none
glm::vec3	m_gizmo_drag_start_world_pos {0.0f}
glm::quat	m_gizmo_drag_start_rotation {1.0f, 0.0f, 0.0f, 0.0f}
glm::vec3	m_gizmo_drag_start_scale {1.0f}
glm::vec3	m_gizmo_drag_anchor {0.0f}
	closest-point-on-axis or ray-plane hit at drag start
glm::vec3	m_gizmo_drag_axis {0.0f}
	world-space axis direction, for axis/ring drags
glm::vec3	m_gizmo_drag_plane_normal {0.0f}
	world-space plane normal, for plane/center/ring drags
float	m_gizmo_drag_start_angle = 0.0f
	radians, for rotate drags
float	m_gizmo_drag_current_factor = 1.0f
	live scale factor, for the scale feedback stretch
glm::vec3	m_gizmo_drag_start_size {0.0f}
glm::vec3	m_gizmo_drag_start_local_pos {0.0f}
glm::quat	m_gizmo_drag_start_local_rot {1.0f, 0.0f, 0.0f, 0.0f}
std::optional< std::string >	m_gizmo_history_start
	dragged field's value at drag start, set while the drag owns the open history transaction
VoxelToolState	m_voxel_tool
Box< Node >	m_voxel_preview
std::optional< glm::vec2 >	m_pick_press
Protected Attributes inherited from toast::INodeOwner
std::mutex	nodes_mutex
size_t	tombstones = 0
	short-circuits the reap sweep when there's nothing to clean
physics::Accumulator	m_accumulator

Additional Inherited Members
Static Public Member Functions inherited from toast::INodeOwner
static void	reapOrphanedControlBoxes () noexcept
Static Protected Member Functions inherited from toast::INodeOwner
static void	updateTransforms (Node &root)
static void	generateUid (Node &node)
	Assigns a fresh UID to the node; called on every spawned instance to avoid UID collisions.
static auto	stripNamespace (std::string_view type) -> std::string_view
	Removes the "toast::" namespace prefix from a type name; used to derive default display names.
static auto	uniqueChildName (const Node &parent, std::string_view base) -> std::string
	Appends " 2", " 3", etc. to base until the name is unique among the parent's existing children.

Detailed Description

Single-viewport node owner used by the editor.

A lightweight alternative to World: owns a node tree through the INodeOwner interface but never ticks nodes, never builds a dependency graph, and never runs lifecycle functions beyond those triggered by instantiation. Use it to display or edit a node tree without running any game logic

See also: World, INodeOwner

Constructor & Destructor Documentation

◆ Workspace() [1/3]

toast::Workspace::Workspace	(	std::string_view	type,
		UID	handle )

Creates a new workspace rooted at a single fresh node of the given type.

Parameters

type	Fully-qualified C++ class name for the root node, e.g. "toast::Node3D"
handle	UID the editor assigned to this workspace; stored for round-trip serialization

Here is the caller graph for this function:

◆ Workspace() [2/3]

toast::Workspace::Workspace ( UID uid )

Opens an existing workspace by loading the prefab at the given UID.

Parameters

uid	Asset UID of a previously saved workspace prefab

◆ Workspace() [3/3]

toast::Workspace::Workspace	(	UID	uid,
		std::string_view	source_uri )

Opens a workspace bound to the given asset UID but loading its content from another file.

Parameters

uid	Asset UID of the workspace prefab; used as the workspace handle
source_uri	Virtual path to read the prefab bytes from

Used to recover autosaves

Member Function Documentation

◆ applyActiveCamera()

void toast::Workspace::applyActiveCamera ( )

overrideprotectedvirtual

Implements toast::INodeOwner.

◆ asWorkspace()

auto toast::Workspace::asWorkspace ( ) -> Workspace *

inlineoverridevirtual

Downcast helper for owners that need Workspace-specific state.

Reimplemented from toast::INodeOwner.

◆ findFrom() [1/2]

auto toast::Workspace::findFrom	(	const Node &	origin,
		const UID &	uid ) -> Box< Node >

overridevirtual

UID lookup over origin's subtree.

Implements toast::INodeOwner.

◆ findFrom() [2/2]

auto toast::Workspace::findFrom	(	const Node &	origin,
		std::string_view	query ) -> Box< Node >

overridevirtual

Name lookup over origin's subtree.

Implements toast::INodeOwner.

Here is the caller graph for this function:

◆ gizmoRenderState()

auto toast::Workspace::gizmoRenderState ( ) const -> GizmoRenderState

nodiscard

snapshot of the active gizmo's transform/highlight state, resolved on the main thread for Engine::tick() to hand to VulkanRenderer

Note: See docs/renderer.md RenderFrame pattern

◆ isPlaying()

virtual auto toast::Workspace::isPlaying ( ) const -> bool

inlinenodiscardvirtual

True for PlayWorkspace, gates gizmo interaction off so it can never run against a live game.

Reimplemented in toast::PlayWorkspace.

Here is the caller graph for this function:

◆ name()

auto toast::Workspace::name ( ) -> std::string

overridevirtual

Implements toast::INodeOwner.

◆ nodeEnabledChanged()

void toast::Workspace::nodeEnabledChanged ( Node & node )

overridevirtualnoexcept

Reimplemented from toast::INodeOwner.

◆ owningPrefabUid()

auto toast::Workspace::owningPrefabUid ( ) const -> UID

inlinenodiscardoverrideprotectedvirtual

Reimplemented from toast::INodeOwner.

◆ participatesIn()

auto toast::Workspace::participatesIn ( NodeOwnerParticipation use ) const -> bool

nodiscardoverridevirtualnoexcept

Determines if this owner is elegible for runtime systems.

Implements toast::INodeOwner.

Here is the caller graph for this function:

◆ receivesEvents()

auto toast::Workspace::receivesEvents ( ) const -> bool

nodiscardoverridevirtualnoexcept

Returns: false when silenced

Reimplemented from toast::INodeOwner.

◆ registerDependency()

void toast::Workspace::registerDependency	(	Node &	from,
		Node &	to )

overridevirtual

No-op; Workspace has no tick scheduler and never registers dependencies.

Implements toast::INodeOwner.

◆ searchFrom()

auto toast::Workspace::searchFrom	(	const Node &	origin,
		std::string_view	query ) -> std::vector< Box< Node > >

overridevirtual

Same query grammar as World::searchFrom(); searches only within m_root_node.

Implements toast::INodeOwner.

◆ subscribeVoxelEditing()

void toast::Workspace::subscribeVoxelEditing ( )

protected

Listens to the VoxelEditor commands, lives in workspace_voxel.cpp

◆ tick()

void toast::Workspace::tick ( )

overridevirtual

Editor-only per-frame work: camera preview, animation preview, editorTick lifecycle, inspector streaming.

Not the gameplay tick scheduler - only what the viewport needs to stay live. See PlayWorkspace::tick()

Implements toast::INodeOwner.

◆ unregisterDependency()

void toast::Workspace::unregisterDependency	(	Node &	from,
		Node &	to )

overridevirtual

Implements toast::INodeOwner.

The documentation for this class was generated from the following files:

engine/src/toast/world/workspace.hpp
engine/src/toast/world/workspace.cpp
engine/src/toast/world/workspace_voxel.cpp

Classes

Public Member Functions

Static Public Attributes

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ Workspace() [1/3]

◆ Workspace() [2/3]

◆ Workspace() [3/3]

Member Function Documentation

◆ applyActiveCamera()

◆ asWorkspace()

◆ findFrom() [1/2]

◆ findFrom() [2/2]

◆ gizmoRenderState()

◆ isPlaying()

◆ name()

◆ nodeEnabledChanged()

◆ owningPrefabUid()

◆ participatesIn()

◆ receivesEvents()

◆ registerDependency()

◆ searchFrom()

◆ subscribeVoxelEditing()

◆ tick()

◆ unregisterDependency()
