toast::SnapshotVolume Class Reference

Fades an FMOD snapshot in and out based on accumulated listener weight. More...

#include <audio_snapshot_volume.hpp>

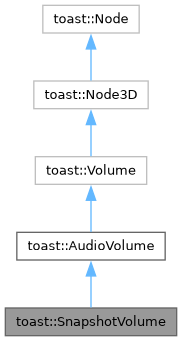

Inheritance diagram for toast::SnapshotVolume:

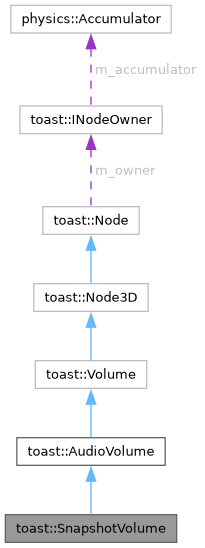

Collaboration diagram for toast::SnapshotVolume:

Public Member Functions
auto	evaluateTarget (const VolumeTarget &target, float weight=1.0f) -> bool override
	Evaluates if a target is inside the volume or not.
void	resetAccumulators () override
void	onAudioTargetEnter (const VolumeTarget &target) override
void	onAudioTargetExit (const VolumeTarget &target) override
Public Member Functions inherited from toast::AudioVolume
void	finalizeAccumulators ()
void	setListeners (const std::vector< Box< AudioListener > > &listeners)
Public Member Functions inherited from toast::Volume
auto	isGlobal () const -> bool
void	isGlobal (bool value)
auto	priority () const -> int8_t
void	priority (int8_t value)
auto	weight () const -> float
void	weight (float value)
auto	blendDistance () const -> float
void	blendDistance (float value)
Public Member Functions inherited from toast::Node3D
auto	raycast (glm::vec3 dir, glm::vec3 offset=glm::vec3(0.0f), float max_distance=-1.0f, bool ignore_self=true, const std::vector< int > &layers=std::vector< int > {}) const -> std::optional< physics::RayHit >
	The nearest thing a ray from this node hits.
auto	raymulticast (glm::vec3 dir, glm::vec3 offset=glm::vec3(0.0f), float max_distance=-1.0f, int max_hits=-1, bool ignore_self=true, const std::vector< int > &layers=std::vector< int > {}) const -> std::vector< physics::RayHit >
	Up to max_hits things collisions.
auto	linecast (glm::vec3 from, glm::vec3 to, int max_hits=-1, bool ignore_self=true, const std::vector< int > &layers=std::vector< int > {}) const -> std::vector< physics::RayHit >
	Everything on the line between two points, nearest to from first.
void	lookAt (glm::vec3 target, glm::vec3 up={0.0f, 0.0f, 1.0f})
	Orients the node so its forward axis points at a world-space target.
void	lookAtZ (glm::vec3 target)
	lookAt() constrained to the XY plane; the node faces the target with no roll
auto	up () const -> glm::vec3
auto	forward () const -> glm::vec3
void	syncTransform () const
void	syncWorldTransform () const
void	refreshTransformParent ()
auto	getTransform () const noexcept -> const glm::mat4 &
auto	getWorldTransform () const noexcept -> const glm::mat4 &
virtual void	onEditorTransformChanged ()
Public Member Functions inherited from toast::Node
auto	uid () const noexcept -> const UID &
	Stable unique identifier, assigned at construction or deserialization. Never changes.
auto	rid () const noexcept -> std::uintptr_t
	Runtime identifier for this node, guaranteed to be unique but changes every time.
auto	name () const noexcept -> std::string_view
	Display name. Siblings may share one - this is not an identifier.
void	name (std::string_view name) noexcept
	Sets the display name.
auto	enabled () const noexcept -> bool
	Whether this node is currently active.
auto	participatesIn (NodeOwnerParticipation use) const noexcept -> bool
auto	owner () const noexcept -> INodeOwner *
	The World or Workspace this node belongs to.
void	enabled (bool value) noexcept
	Sets the local enabled flag and propagates the change to all children.
auto	box () const noexcept -> Box< Node >
	Returns an owning handle to this node.
auto	info () const -> const NodeInfo *
	Reflection metadata registered by the code generator.
auto	sourcePrefab () const noexcept -> const assets::Handle< assets::Prefab > &
	The prefab this node was instantiated from.
auto	isInstanceRoot () const noexcept -> bool
	Whether this node is the root of a prefab instance.
auto	root () const noexcept -> Box< Node >
	The topmost ancestor that is not the world root.
auto	state () const noexcept -> NodeState
auto	type () const noexcept -> NodeType
auto	listener () noexcept -> event::Listener &
	The event Listener owned by this node. Lazy-allocated, freed only with the node.
auto	parent () noexcept -> Box< Node >
	The immediate parent of this node.
auto	children () const noexcept -> const std::vector< Box< Node > > &
	The ordered list of direct children.
auto	childrenSnapshot () const -> std::vector< Box< Node > >
auto	create (std::string_view type="toast::Node") noexcept -> Box< Node >
	Creates a new child node of the given type and attaches it to this node.
auto	spawn (UID uid) noexcept -> Box< Node >
	Asynchronously instantiates a prefab as a child of this node.
auto	spawn (std::string_view uri) noexcept -> Box< Node >
	Asynchronously instantiates a prefab as a child of this node.
auto	find (std::string_view query) -> Box< Node >
	Depth-first search for a single descendant.
auto	find (const UID &uid) -> Box< Node >
	Looks up a node by UID within this node's local root.
auto	search (std::string_view query) -> std::vector< Box< Node > >
	Depth-first search for all matching descendants.
auto	childrenOfType (const NodeInfo *type) const -> std::vector< Box< Node > >
auto	searchType (const NodeInfo *type) const -> std::vector< Box< Node > >
void	addDependsOn (Node &other)
void	removeDependsOn (Node &other)
void	interactsWith (Node &other)
	Declares that the scripts of this node and of other call each other.
auto	scriptRuntime () noexcept -> scripting::ScriptRuntime *
auto	hasTickFunction (TickFunctionList mask) const noexcept -> bool
auto	scriptVm (TickFunctionList func) const noexcept -> std::optional< size_t >
	The interpreter this node runs Lua on while it executes func, empty when it runs none.
auto	scriptVmAny () const noexcept -> std::optional< size_t >
	The interpreter the scripts of this node live on whatever phase they define.
auto	hasCallable (std::string_view name) const noexcept -> bool
void	reloadScripts () noexcept
	Rebuilds the script runtime after a script asset changed (hot reload or attach).
auto	scripts () const noexcept -> const std::vector< assets::Handle< assets::Script > > &
void	setScripts (std::vector< assets::Handle< assets::Script > > scripts) noexcept
void	addScript (const assets::Handle< assets::Script > &script) noexcept
template<typename R = void, typename... Args>
auto	call (std::string_view name, Args &&... args) -> R
	Invokes all C++ reflected implementations of name (base→derived) and all same-named Lua functions across every attached script, forwarding args.
template<typename T>
auto	get (std::string_view name) const -> T
	Reads a named value: reflected C++ field first, then the first matching Lua instance variable.
template<typename T>
void	set (std::string_view name, const T &value)
	Writes a named value: reflected C++ field if present and every Lua instance variable of that name that already exists.
auto	isRecursivePrefab () const noexcept -> bool

Additional Inherited Members
Public Attributes inherited from toast::Volume
glm::vec4	debug_color = glm::vec4(0.0f, 1.0f, 0.251f, 0.5f)
bool	debug_fill = true
signals::Signal< Box< Node > >	node_exited
signals::Signal< Box< Node > >	node_entered
Public Attributes inherited from toast::Node3D
glm::vec3	position = glm::vec3(0.0f)
glm::quat	rotation = glm::quat(1.0f, 0.0f, 0.0f, 0.0f)
glm::vec3	scale = glm::vec3(1.0f)
glm::vec3	world_position = glm::vec3(0.0f)
glm::quat	world_rotation = glm::quat(1.0f, 0.0f, 0.0f, 0.0f)
glm::vec3	world_scale = glm::vec3(1.0f)
Public Attributes inherited from toast::Node
signals::Signal< Box< Node > >	on_enable
signals::Signal< Box< Node > >	on_disable
signals::Signal< Box< Node > >	on_begin
signals::Signal< Box< Node > >	on_end
Static Public Attributes inherited from toast::Node3D
static const glm::vec3	world_up = {0.0f, 0.0f, 1.0f}
static const glm::vec3	world_forward = {0.0f, 1.0f, 0.0f}
	Z axis.
static const glm::vec3	world_right = {1.0f, 0.0f, 0.0f}
	Y axis.
Protected Member Functions inherited from toast::AudioVolume
auto	trackTarget (const VolumeTarget &target, bool inside) -> bool
	returns true if the inside state changed
auto	hasListenersInside () const -> bool
Protected Member Functions inherited from toast::Volume
void	updateInspectorMessages () override
auto	calculateWeight (const VolumeTarget &target) const -> float
	<
virtual auto	closestPointOnBounds (glm::vec3 point) const -> glm::vec3
	Calculates the point on the bounds of the volume that is closest to the given point.
Protected Member Functions inherited from toast::Node3D
void	init ()
	X axis.
Protected Member Functions inherited from toast::Node
virtual void	onReflectedFieldChanged (std::string_view)
virtual void	onScriptsReloaded ()
virtual void	onScriptsReloading ()
virtual auto	luaAffinity () const noexcept -> std::optional< size_t >
virtual void	onScriptVarChanged (std::string_view path)
void	addInspectorMessage (const NodeMessage &message)
void	removeInspectorMessage (const NodeMessage &message)
Protected Attributes inherited from toast::Node
INodeOwner *	m_owner = nullptr

Detailed Description

Fades an FMOD snapshot in and out based on accumulated listener weight.

As listeners enter the volume, the snapshot intensity smoothly rises. As they leave, it falls back to zero. Multiple overlapping snapshots combine additively

Member Function Documentation

evaluateTarget()

auto toast::SnapshotVolume::evaluateTarget ( const VolumeTarget & target, float weight = 1.0f ) -> bool

overridevirtual

Evaluates if a target is inside the volume or not.

Returns

true if the target is inside the volume

Implements toast::Volume.

onAudioTargetEnter()

void toast::SnapshotVolume::onAudioTargetEnter ( const VolumeTarget & target )

overridevirtual

Implements toast::AudioVolume.

onAudioTargetExit()

void toast::SnapshotVolume::onAudioTargetExit ( const VolumeTarget & target )

overridevirtual

Implements toast::AudioVolume.

resetAccumulators()

void toast::SnapshotVolume::resetAccumulators ( )

overridevirtual

Reimplemented from toast::AudioVolume.

---

The documentation for this class was generated from the following files:

• engine/src/toast/audio/nodes/audio_snapshot_volume.hpp
• engine/src/toast/audio/nodes/audio_snapshot_volume.cpp
