toast::VoxelVolume Class Reference

#include <voxel_volume.hpp>

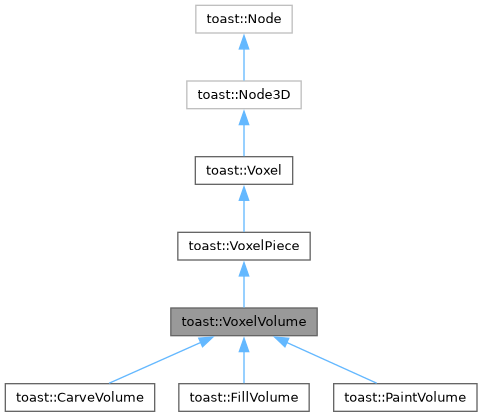

Inheritance diagram for toast::VoxelVolume:

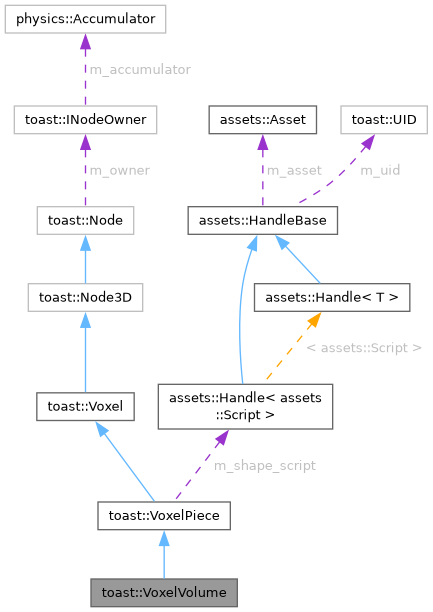

Collaboration diagram for toast::VoxelVolume:

Public Member Functions
auto	getId () const -> int
void	setId (int value)
void	setSize (glm::vec3 value)
auto	getMode () const -> voxel::WriteMode
void	setMode (voxel::WriteMode value)
auto	getMatchId () const -> int
void	setMatchId (int value)
auto	sizeVoxels () const noexcept -> glm::ivec3
void	setSizeVoxels (glm::ivec3 size)
auto	resizable () const noexcept -> bool override
auto	writeMode () const noexcept -> voxel::WriteMode override
auto	matchId () const noexcept -> uint8_t override
Public Member Functions inherited from toast::VoxelPiece
auto	getSize () -> glm::vec3
auto	getVoxel (glm::vec3 pos) -> int
void	setVoxel (glm::vec3 pos, int id)
void	removeVoxel (glm::vec3 pos)
void	fillBox (glm::vec3 min, glm::vec3 max, int id, voxel::WriteMode mode=voxel::WriteMode::replace, int match_id=0)
void	fillRoundBox (glm::vec3 min, glm::vec3 max, float radius, int id, voxel::WriteMode mode=voxel::WriteMode::replace, int match_id=0)
void	fillSphere (glm::vec3 center, float radius, int id, voxel::WriteMode mode=voxel::WriteMode::replace, int match_id=0)
void	fillEllipsoid (glm::vec3 min, glm::vec3 max, int id, voxel::WriteMode mode=voxel::WriteMode::replace, int match_id=0)
void	fillCylinder (glm::vec3 a, glm::vec3 b, float radius, int id, voxel::WriteMode mode=voxel::WriteMode::replace, int match_id=0)
void	fillCapsule (glm::vec3 a, glm::vec3 b, float radius, int id, voxel::WriteMode mode=voxel::WriteMode::replace, int match_id=0)
void	carveBox (glm::vec3 min, glm::vec3 max)
void	carveSphere (glm::vec3 center, float radius)
void	paintBox (glm::vec3 min, glm::vec3 max, int id)
void	stamp (const assets::Handle< assets::VoxelModel > &asset, glm::vec3 pos, glm::quat rotation=glm::quat(1.0f, 0.0f, 0.0f, 0.0f), voxel::WriteMode mode=voxel::WriteMode::replace, int match_id=0)
void	tile (const assets::Handle< assets::VoxelModel > &asset, int fit=0, glm::vec3 anchor=glm::vec3(0.0f), glm::vec3 offset=glm::vec3(0.0f), glm::vec3 mirror=glm::vec3(0.0f), voxel::WriteMode mode=voxel::WriteMode::replace, int match_id=0)
void	redraw ()
auto	getShapeScript () const -> const assets::Handle< assets::Script > &
void	setShapeScript (assets::Handle< assets::Script > script)
auto	getClipPlanes () const -> std::vector< glm::vec4 >
void	setClipPlanes (std::vector< glm::vec4 > planes)
void	addClipPlane (glm::vec4 plane)
void	clearClipPlanes ()
auto	getShapeBounds () -> std::vector< glm::vec3 >
auto	getShape () -> Box< Node >
auto	isMisaligned () const noexcept -> bool
virtual auto	kind () const noexcept -> PieceKind
virtual auto	sourcePaletteUid () const -> uint64_t
auto	grid () -> const voxel::Volume *
auto	gridRef () -> GridRef
void	requestGrid ()
auto	collectGrid () -> bool
auto	readyGrid () -> GridRef
auto	gridBuilding () const noexcept -> bool
auto	gridStale () const noexcept -> bool
void	waitForGrid ()
auto	inputRevision () const noexcept -> uint32_t
auto	buildCount () const noexcept -> uint32_t
auto	clipPlanes () const noexcept -> const std::vector< glm::vec4 > &
auto	nominalSize () -> glm::ivec3
void	releaseGrid ()
void	setMisaligned (bool misaligned)
Public Member Functions inherited from toast::Node3D
auto	raycast (glm::vec3 dir, glm::vec3 offset=glm::vec3(0.0f), float max_distance=-1.0f, bool ignore_self=true, const std::vector< int > &layers=std::vector< int > {}) const -> std::optional< physics::RayHit >
	The nearest thing a ray from this node hits.
auto	raymulticast (glm::vec3 dir, glm::vec3 offset=glm::vec3(0.0f), float max_distance=-1.0f, int max_hits=-1, bool ignore_self=true, const std::vector< int > &layers=std::vector< int > {}) const -> std::vector< physics::RayHit >
	Up to max_hits things collisions.
auto	linecast (glm::vec3 from, glm::vec3 to, int max_hits=-1, bool ignore_self=true, const std::vector< int > &layers=std::vector< int > {}) const -> std::vector< physics::RayHit >
	Everything on the line between two points, nearest to from first.
void	lookAt (glm::vec3 target, glm::vec3 up={0.0f, 0.0f, 1.0f})
	Orients the node so its forward axis points at a world-space target.
void	lookAtZ (glm::vec3 target)
	lookAt() constrained to the XY plane; the node faces the target with no roll
auto	up () const -> glm::vec3
auto	forward () const -> glm::vec3
void	syncTransform () const
void	syncWorldTransform () const
void	refreshTransformParent ()
auto	getTransform () const noexcept -> const glm::mat4 &
auto	getWorldTransform () const noexcept -> const glm::mat4 &
virtual void	onEditorTransformChanged ()
Public Member Functions inherited from toast::Node
auto	uid () const noexcept -> const UID &
	Stable unique identifier, assigned at construction or deserialization. Never changes.
auto	rid () const noexcept -> std::uintptr_t
	Runtime identifier for this node, guaranteed to be unique but changes every time.
auto	name () const noexcept -> std::string_view
	Display name. Siblings may share one - this is not an identifier.
void	name (std::string_view name) noexcept
	Sets the display name.
auto	enabled () const noexcept -> bool
	Whether this node is currently active.
auto	participatesIn (NodeOwnerParticipation use) const noexcept -> bool
auto	owner () const noexcept -> INodeOwner *
	The World or Workspace this node belongs to.
void	enabled (bool value) noexcept
	Sets the local enabled flag and propagates the change to all children.
auto	box () const noexcept -> Box< Node >
	Returns an owning handle to this node.
auto	info () const -> const NodeInfo *
	Reflection metadata registered by the code generator.
auto	sourcePrefab () const noexcept -> const assets::Handle< assets::Prefab > &
	The prefab this node was instantiated from.
auto	isInstanceRoot () const noexcept -> bool
	Whether this node is the root of a prefab instance.
auto	root () const noexcept -> Box< Node >
	The topmost ancestor that is not the world root.
auto	state () const noexcept -> NodeState
auto	type () const noexcept -> NodeType
auto	listener () noexcept -> event::Listener &
	The event Listener owned by this node. Lazy-allocated, freed only with the node.
auto	parent () noexcept -> Box< Node >
	The immediate parent of this node.
auto	children () const noexcept -> const std::vector< Box< Node > > &
	The ordered list of direct children.
auto	childrenSnapshot () const -> std::vector< Box< Node > >
auto	create (std::string_view type="toast::Node") noexcept -> Box< Node >
	Creates a new child node of the given type and attaches it to this node.
auto	spawn (UID uid) noexcept -> Box< Node >
	Asynchronously instantiates a prefab as a child of this node.
auto	spawn (std::string_view uri) noexcept -> Box< Node >
	Asynchronously instantiates a prefab as a child of this node.
auto	find (std::string_view query) -> Box< Node >
	Depth-first search for a single descendant.
auto	find (const UID &uid) -> Box< Node >
	Looks up a node by UID within this node's local root.
auto	search (std::string_view query) -> std::vector< Box< Node > >
	Depth-first search for all matching descendants.
auto	childrenOfType (const NodeInfo *type) const -> std::vector< Box< Node > >
auto	searchType (const NodeInfo *type) const -> std::vector< Box< Node > >
void	addDependsOn (Node &other)
void	removeDependsOn (Node &other)
void	interactsWith (Node &other)
	Declares that the scripts of this node and of other call each other.
auto	scriptRuntime () noexcept -> scripting::ScriptRuntime *
auto	hasTickFunction (TickFunctionList mask) const noexcept -> bool
auto	scriptVm (TickFunctionList func) const noexcept -> std::optional< size_t >
	The interpreter this node runs Lua on while it executes func, empty when it runs none.
auto	scriptVmAny () const noexcept -> std::optional< size_t >
	The interpreter the scripts of this node live on whatever phase they define.
auto	hasCallable (std::string_view name) const noexcept -> bool
void	reloadScripts () noexcept
	Rebuilds the script runtime after a script asset changed (hot reload or attach).
auto	scripts () const noexcept -> const std::vector< assets::Handle< assets::Script > > &
void	setScripts (std::vector< assets::Handle< assets::Script > > scripts) noexcept
void	addScript (const assets::Handle< assets::Script > &script) noexcept
template<typename R = void, typename... Args>
auto	call (std::string_view name, Args &&... args) -> R
	Invokes all C++ reflected implementations of name (base→derived) and all same-named Lua functions across every attached script, forwarding args.
template<typename T>
auto	get (std::string_view name) const -> T
	Reads a named value: reflected C++ field first, then the first matching Lua instance variable.
template<typename T>
void	set (std::string_view name, const T &value)
	Writes a named value: reflected C++ field if present and every Lua instance variable of that name that already exists.
auto	isRecursivePrefab () const noexcept -> bool

Protected Member Functions
void	init ()
auto	prepareGrid () -> std::unique_ptr< voxel::Volume > override
void	finishGrid (voxel::Volume &grid) override
auto	pieceSize () -> glm::ivec3 override
void	onReflectedFieldChanged (std::string_view field_name) override
void	sizeChanged ()
Protected Member Functions inherited from toast::VoxelPiece
void	markGridDirty () noexcept
void	markLandingDirty () noexcept
void	onScriptsReloading () override
void	onScriptsReloaded () override
void	onScriptVarChanged (std::string_view path) override
void	updateInspectorMessages () override
template<typename Kernel>
void	draw (std::string_view operation, Kernel &&kernel)
auto	drawing () const noexcept -> voxel::Volume *
void	init ()
void	destroy ()
Protected Member Functions inherited from toast::Node3D
void	init ()
	X axis.
Protected Member Functions inherited from toast::Node
virtual auto	luaAffinity () const noexcept -> std::optional< size_t >
void	addInspectorMessage (const NodeMessage &message)
void	removeInspectorMessage (const NodeMessage &message)

Protected Attributes
glm::ivec3	m_sized_for {0}
glm::vec3	size = glm::vec3(10.0f)
int	id = 1
voxel::WriteMode	mode = voxel::WriteMode::replace
int	match_id = 0
Protected Attributes inherited from toast::VoxelPiece
assets::Handle< assets::Script >	m_shape_script
std::vector< glm::vec4 >	m_clip_planes
Protected Attributes inherited from toast::Node
INodeOwner *	m_owner = nullptr

Additional Inherited Members
Public Types inherited from toast::VoxelPiece
using	GridRef = std::shared_ptr<const Grid>
Public Attributes inherited from toast::VoxelPiece
signals::Signal	drawn
	Sent after editShape drew the grid again.
Public Attributes inherited from toast::Node3D
glm::vec3	position = glm::vec3(0.0f)
glm::quat	rotation = glm::quat(1.0f, 0.0f, 0.0f, 0.0f)
glm::vec3	scale = glm::vec3(1.0f)
glm::vec3	world_position = glm::vec3(0.0f)
glm::quat	world_rotation = glm::quat(1.0f, 0.0f, 0.0f, 0.0f)
glm::vec3	world_scale = glm::vec3(1.0f)
Public Attributes inherited from toast::Node
signals::Signal< Box< Node > >	on_enable
signals::Signal< Box< Node > >	on_disable
signals::Signal< Box< Node > >	on_begin
signals::Signal< Box< Node > >	on_end
Static Public Attributes inherited from toast::Node3D
static const glm::vec3	world_up = {0.0f, 0.0f, 1.0f}
static const glm::vec3	world_forward = {0.0f, 1.0f, 0.0f}
	Z axis.
static const glm::vec3	world_right = {1.0f, 0.0f, 0.0f}
	Y axis.

Detailed Description

A box of voxels drawn by its first script Scripts get the size and cannot change it

Member Function Documentation

finishGrid()

void toast::VoxelVolume::finishGrid ( voxel::Volume & grid )

overrideprotectedvirtual

Runs after editShape

Reimplemented from toast::VoxelPiece.

getId()

auto toast::VoxelVolume::getId ( ) const -> int

nodiscard

Returns

the palette ID the volume draws with

getMatchId()

auto toast::VoxelVolume::getMatchId ( ) const -> int

nodiscard

Returns

the only palette ID that Match overwrites

getMode()

auto toast::VoxelVolume::getMode ( ) const -> voxel::WriteMode

nodiscard

Returns

what the volume is allowed to overwrite

matchId()

auto toast::VoxelVolume::matchId ( ) const -> uint8_t

nodiscardoverridevirtualnoexcept

Reimplemented from toast::VoxelPiece.

onReflectedFieldChanged()

void toast::VoxelVolume::onReflectedFieldChanged ( std::string_view field_name )

overrideprotectedvirtual

Reimplemented from toast::VoxelPiece.

pieceSize()

auto toast::VoxelVolume::pieceSize ( ) -> glm::ivec3

overrideprotectedvirtual

The size scripts draw into, the grid itself is rounded up to whole bricks

Reimplemented from toast::VoxelPiece.

prepareGrid()

auto toast::VoxelVolume::prepareGrid ( ) -> std::unique_ptr< voxel::Volume >

overrideprotectedvirtual

A fresh grid for editShape to draw into

Implements toast::VoxelPiece.

resizable()

auto toast::VoxelVolume::resizable ( ) const -> bool

inlinenodiscardoverridevirtualnoexcept

Volumes resize, meshes keep the size of their model

Reimplemented from toast::VoxelPiece.

setId()

void toast::VoxelVolume::setId

(

int

value

)

Changes the palette ID the volume draws with and redraws it

setSize()

void toast::VoxelVolume::setSize

(

glm::vec3

value

)

Resizes the volume in voxels, every axis is at least 1

writeMode()

auto toast::VoxelVolume::writeMode ( ) const -> voxel::WriteMode

inlinenodiscardoverridevirtualnoexcept

Reimplemented from toast::VoxelPiece.

Member Data Documentation

id

int toast::VoxelVolume::id = 1

protected

Palette ID that scripts draw with

match_id

int toast::VoxelVolume::match_id = 0

protected

The only palette ID that Match overwrites

---

The documentation for this class was generated from the following files:

• engine/src/toast/voxel/nodes/voxel_volume.hpp
• engine/src/toast/voxel/nodes/voxel_volume.cpp
